SDO HMI 2011-11-23 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.72 | 93.42 | 9.34 | 49.06 | -16.74 | 265.82 | 5.15 | 195.05 | 0.3343 | 124.4 | -52.0 | |
|
previous
or next observation for the same group /

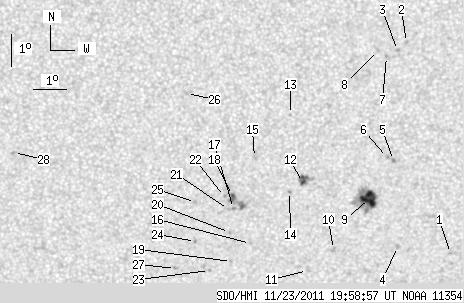

back to the solar disc SDO HMI 2011-11-23 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.64 | -18.70 | 270.26 | 9.58 | 204.21 | 0.3862 | 762.0 | 648.7 | |
| 0.00 | 1.97 | 0.00 | 1.02 | -12.15 | 268.61 | 7.93 | 209.18 | 0.2781 | 937.0 | 542.2 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -12.40 | 268.34 | 7.67 | 207.93 | 0.2795 | 1030.0 | 755.3 | |
| 0.00 | 2.06 | 0.00 | 1.10 | -18.47 | 268.57 | 7.90 | 200.58 | 0.3724 | 814.0 | 704.0 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -15.78 | 268.33 | 7.66 | 202.96 | 0.3302 | 999.0 | 858.5 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -15.69 | 268.14 | 7.47 | 202.57 | 0.3275 | 849.0 | 726.8 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -12.58 | 268.01 | 7.34 | 206.59 | 0.2797 | 884.0 | 649.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -12.39 | 267.73 | 7.06 | 206.01 | 0.2748 | 716.0 | 522.8 | |
| 14.47 | 36.22 | 7.63 | 19.09 | -16.96 | 267.63 | 6.96 | 199.77 | 0.3440 | 1165.8 | 573.9 | |
| 0.00 | 2.40 | 0.00 | 1.27 | -18.56 | 266.57 | 5.89 | 195.59 | 0.3636 | 880.0 | 696.1 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -19.22 | 265.77 | 5.09 | 193.13 | 0.3708 | 596.0 | 514.4 | |
| 1.37 | 8.73 | 0.72 | 4.57 | -16.46 | 265.54 | 4.86 | 194.51 | 0.3258 | -1085.6 | -743.2 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -14.35 | 265.12 | 4.44 | 195.06 | 0.2901 | 868.0 | 679.8 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -16.74 | 265.14 | 4.46 | 193.17 | 0.3287 | -857.0 | -760.2 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -15.67 | 264.04 | 3.36 | 190.62 | 0.3077 | -913.0 | -671.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -18.36 | 263.96 | 3.29 | 188.95 | 0.3513 | -743.0 | -608.0 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -17.26 | 263.41 | 2.74 | 187.93 | 0.3321 | -877.0 | -726.3 | |
| 1.88 | 12.84 | 0.99 | 6.73 | -16.86 | 263.38 | 2.70 | 188.01 | 0.3253 | -1095.6 | -923.0 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -18.93 | 263.38 | 2.70 | 187.16 | 0.3592 | -810.0 | -651.3 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -18.02 | 263.30 | 2.63 | 187.31 | 0.3442 | -947.0 | -700.5 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -17.29 | 263.26 | 2.58 | 187.48 | 0.3323 | -946.0 | -743.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -16.89 | 263.13 | 2.45 | 187.27 | 0.3253 | -912.0 | -788.9 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -19.22 | 262.69 | 2.02 | 185.28 | 0.3626 | -775.0 | -534.7 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -18.30 | 262.25 | 1.57 | 184.32 | 0.3470 | -935.0 | -694.3 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -17.07 | 262.23 | 1.56 | 184.59 | 0.3268 | -867.0 | -716.3 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -13.70 | 261.94 | 1.26 | 184.56 | 0.2701 | -827.0 | -563.2 | |
| 0.00 | 2.14 | 0.00 | 1.14 | -19.15 | 261.63 | 0.95 | 182.51 | 0.3604 | -748.0 | -579.7 | |
| 0.00 | 1.97 | 0.00 | 1.02 | -15.52 | 256.63 | -4.04 | 167.17 | 0.3075 | -935.0 | -606.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
