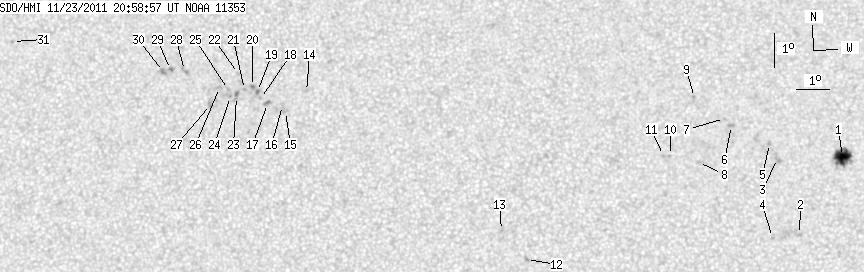

SDO HMI 2011-11-23 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.96 | 82.63 | 7.00 | 41.75 | 8.72 | 257.67 | -2.45 | 190.68 | 0.1883 | -70.1 | 72.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.96 | 24.75 | 7.00 | 12.42 | 7.97 | 266.96 | 6.84 | 312.17 | 0.1598 | -1222.5 | -795.3 | |
| 0.00 | 1.97 | 0.00 | 0.98 | 5.65 | 265.64 | 5.52 | 304.81 | 0.1171 | -919.0 | -730.2 | |
| 0.00 | 4.45 | 0.00 | 2.23 | 7.91 | 265.01 | 4.88 | 321.43 | 0.1359 | -830.0 | -679.2 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 5.57 | 264.83 | 4.71 | 308.48 | 0.1049 | -894.0 | -743.6 | |
| 0.00 | 2.06 | 0.00 | 1.03 | 8.36 | 264.77 | 4.65 | 324.75 | 0.1396 | -896.0 | -767.2 | |
| 0.00 | 2.48 | 0.00 | 1.24 | 8.90 | 263.64 | 3.52 | 333.74 | 0.1376 | -875.0 | -733.5 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 9.11 | 263.43 | 3.31 | 335.74 | 0.1393 | -827.0 | -676.6 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 7.80 | 262.64 | 2.52 | 337.22 | 0.1130 | -908.0 | -599.5 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 9.74 | 262.54 | 2.41 | 343.18 | 0.1441 | -899.0 | -760.7 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 8.01 | 261.81 | 1.68 | 344.83 | 0.1117 | -646.0 | -573.3 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 8.01 | 261.60 | 1.47 | 346.64 | 0.1108 | -910.0 | -676.7 | |
| 0.00 | 2.23 | 0.00 | 1.11 | 4.92 | 257.52 | -2.60 | 40.15 | 0.0705 | -1064.0 | -789.4 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 5.78 | 256.77 | -3.35 | 40.28 | 0.0903 | -997.0 | -701.5 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 9.89 | 250.84 | -9.28 | 48.53 | 0.2129 | 688.0 | 511.6 | |
| 0.00 | 2.06 | 0.00 | 1.04 | 9.29 | 250.22 | -9.90 | 52.53 | 0.2148 | 630.0 | 731.1 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 9.47 | 250.13 | -10.00 | 52.13 | 0.2179 | 565.0 | 633.3 | |
| 0.00 | 3.43 | 0.00 | 1.74 | 9.53 | 249.67 | -10.46 | 53.14 | 0.2247 | 1114.0 | 897.9 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 9.68 | 249.45 | -10.67 | 53.17 | 0.2292 | 981.0 | 806.1 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 9.89 | 249.35 | -10.77 | 52.68 | 0.2326 | 1157.0 | 981.5 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 10.03 | 249.19 | -10.93 | 52.56 | 0.2362 | 1060.0 | 897.1 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 9.94 | 248.95 | -11.17 | 53.46 | 0.2386 | 1091.0 | 885.2 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 10.42 | 248.75 | -11.37 | 52.34 | 0.2461 | 822.0 | 592.4 | |
| 0.00 | 3.43 | 0.00 | 1.75 | 9.73 | 248.71 | -11.41 | 54.75 | 0.2398 | 991.0 | 981.5 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 9.73 | 248.53 | -11.59 | 55.17 | 0.2424 | 1138.0 | 951.8 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 9.94 | 248.46 | -11.66 | 54.62 | 0.2453 | 893.0 | 697.1 | |
| 0.00 | 2.74 | 0.00 | 1.40 | 10.00 | 248.18 | -11.94 | 55.04 | 0.2497 | 899.0 | 648.7 | |
| 0.00 | 2.31 | 0.00 | 1.18 | 9.49 | 247.92 | -12.20 | 57.32 | 0.2487 | 888.0 | 741.7 | |
| 0.00 | 3.08 | 0.00 | 1.59 | 10.50 | 247.08 | -13.04 | 55.72 | 0.2697 | 830.0 | 781.1 | |
| 0.00 | 1.97 | 0.00 | 1.01 | 10.53 | 246.65 | -13.47 | 56.48 | 0.2760 | 1138.0 | 919.0 | |
| 0.00 | 3.60 | 0.00 | 1.85 | 10.46 | 246.44 | -13.69 | 57.07 | 0.2785 | 992.0 | 833.6 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 11.32 | 241.65 | -18.47 | 61.85 | 0.3539 | 753.0 | 528.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
