SDO HMI 2011-11-23 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.35 | 127.00 | 29.02 | 162.62 | 19.13 | 193.65 | -66.47 | 69.99 | 0.9230 | -384.4 | -145.8 | |
|
previous
or next observation for the same group /

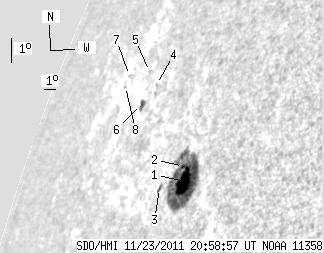

back to the solar disc SDO HMI 2011-11-23 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.67 | 115.69 | 23.25 | 144.60 | 18.89 | 194.27 | -65.85 | 70.18 | 0.9194 | -677.3 | -175.3 | |
| 0.60 | -1.00 | 0.76 | -1.00 | 19.35 | 193.91 | -66.21 | 69.73 | 0.9221 | -120.3 | 999999 | |
| 0.00 | 2.83 | 0.00 | 3.76 | 18.62 | 192.56 | -67.56 | 70.66 | 0.9299 | -253.0 | -166.1 | |
| 0.00 | 1.03 | 0.00 | 1.61 | 21.80 | 189.16 | -70.96 | 67.62 | 0.9506 | 53.0 | -6.2 | |
| 0.00 | 0.94 | 0.00 | 1.58 | 22.18 | 187.98 | -72.14 | 67.33 | 0.9565 | 290.0 | 331.2 | |
| 3.08 | 4.37 | 5.01 | 7.08 | 21.15 | 188.43 | -71.70 | 68.37 | 0.9539 | 416.1 | 375.5 | |
| 0.00 | 0.86 | 0.00 | 1.60 | 22.00 | 185.99 | -74.13 | 67.68 | 0.9653 | 278.0 | 271.1 | |
| 0.00 | 1.28 | 0.00 | 2.39 | 21.65 | 186.02 | -74.10 | 68.04 | 0.9651 | 308.0 | 235.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
