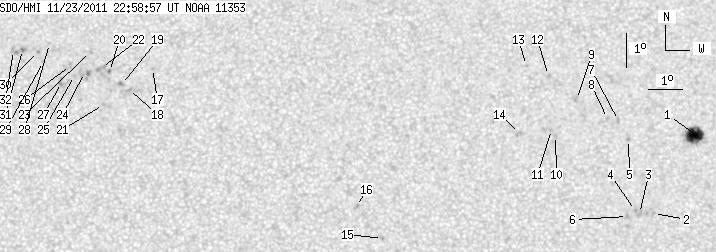

SDO HMI 2011-11-23 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.76 | 80.76 | 9.43 | 40.68 | 8.54 | 258.42 | -0.60 | 213.73 | 0.1821 | -248.8 | 65.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.76 | 23.72 | 9.43 | 11.93 | 7.98 | 266.97 | 7.95 | 308.09 | 0.1749 | -1170.0 | -701.1 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 5.64 | 265.70 | 6.68 | 299.90 | 0.1343 | -811.0 | -684.5 | |
| 0.00 | 3.00 | 0.00 | 1.50 | 5.64 | 265.28 | 6.27 | 301.52 | 0.1280 | -694.0 | -706.1 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 5.73 | 265.17 | 6.15 | 302.61 | 0.1271 | -882.0 | -636.4 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 7.84 | 264.98 | 5.96 | 315.52 | 0.1476 | -1118.0 | -917.9 | |
| 0.00 | 2.48 | 0.00 | 1.24 | 5.56 | 264.92 | 5.91 | 302.43 | 0.1219 | -974.0 | -690.2 | |
| 0.00 | 2.14 | 0.00 | 1.07 | 8.41 | 264.69 | 5.67 | 319.54 | 0.1514 | -871.0 | -675.9 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 8.47 | 264.36 | 5.34 | 321.47 | 0.1485 | -944.0 | -695.6 | |
| 0.00 | 2.48 | 0.00 | 1.24 | 9.04 | 263.44 | 4.42 | 328.77 | 0.1474 | -799.0 | -733.3 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 7.97 | 262.80 | 3.78 | 328.60 | 0.1258 | -832.0 | -700.9 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 8.15 | 262.68 | 3.66 | 330.13 | 0.1274 | -796.0 | -657.6 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 9.76 | 262.60 | 3.59 | 335.91 | 0.1517 | -947.0 | -690.6 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 10.06 | 261.94 | 2.93 | 340.63 | 0.1523 | -829.0 | -578.7 | |
| 0.00 | 2.40 | 0.00 | 1.20 | 8.03 | 261.72 | 2.70 | 336.62 | 0.1181 | -720.0 | -674.8 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 4.91 | 257.63 | -1.38 | 24.14 | 0.0591 | -1078.0 | -773.6 | |
| 0.00 | 2.06 | 0.00 | 1.02 | 5.86 | 256.86 | -2.16 | 28.10 | 0.0800 | -891.0 | -748.7 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 9.95 | 250.68 | -8.34 | 45.27 | 0.2020 | 859.0 | 631.4 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 9.32 | 249.97 | -9.05 | 49.91 | 0.2038 | 874.0 | 794.9 | |
| 0.00 | 2.14 | 0.00 | 1.08 | 9.47 | 249.75 | -9.27 | 50.01 | 0.2083 | 1056.0 | 924.2 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 9.85 | 249.38 | -9.64 | 49.70 | 0.2174 | 1042.0 | 850.3 | |
| 0.00 | 0.60 | 0.00 | 0.30 | 8.87 | 249.22 | -9.80 | 53.83 | 0.2092 | 949.0 | 738.9 | |
| 0.00 | 3.51 | 0.00 | 1.78 | 9.97 | 249.13 | -9.89 | 49.99 | 0.2219 | 909.0 | 888.9 | |
| 0.00 | 1.97 | 0.00 | 1.00 | 10.45 | 248.78 | -10.24 | 49.32 | 0.2316 | 710.0 | 506.0 | |
| 0.00 | 5.22 | 0.00 | 2.66 | 9.82 | 248.61 | -10.40 | 51.92 | 0.2271 | 478.0 | 895.0 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 9.73 | 248.31 | -10.71 | 53.02 | 0.2303 | 990.0 | 750.6 | |
| 0.00 | 1.97 | 0.00 | 1.00 | 10.03 | 248.18 | -10.84 | 52.32 | 0.2351 | 789.0 | 671.4 | |
| 0.00 | 3.60 | 0.00 | 1.83 | 9.52 | 247.92 | -11.10 | 54.73 | 0.2336 | 715.0 | 752.1 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 10.68 | 247.51 | -11.51 | 51.77 | 0.2507 | 776.0 | 613.9 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 10.14 | 247.35 | -11.67 | 53.92 | 0.2475 | 933.0 | 734.1 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 10.44 | 247.18 | -11.84 | 53.31 | 0.2527 | 988.0 | 858.0 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 10.50 | 246.69 | -12.33 | 54.22 | 0.2600 | 1117.0 | 981.3 | |
| 0.00 | 2.66 | 0.00 | 1.36 | 10.46 | 246.41 | -12.61 | 54.91 | 0.2635 | 974.0 | 786.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
