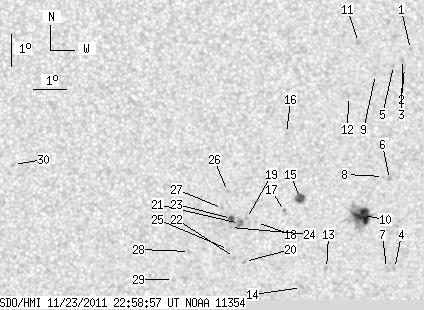

SDO HMI 2011-11-23 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.64 | 89.05 | 12.47 | 46.96 | -16.64 | 266.24 | 7.22 | 200.82 | 0.3426 | 98.5 | 101.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.53 | -11.84 | 268.87 | 9.85 | 215.37 | 0.2907 | 909.0 | 662.0 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -12.39 | 268.71 | 9.69 | 213.83 | 0.2966 | 759.0 | 558.3 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -12.14 | 268.64 | 9.62 | 214.12 | 0.2926 | 890.0 | 745.9 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -18.62 | 268.69 | 9.67 | 204.52 | 0.3854 | 864.0 | 630.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -12.32 | 268.37 | 9.35 | 213.02 | 0.2926 | 873.0 | 740.5 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -15.83 | 268.39 | 9.37 | 207.33 | 0.3427 | 994.0 | 762.1 | |
| 0.00 | 2.40 | 0.00 | 1.29 | -18.62 | 268.44 | 9.42 | 203.96 | 0.3837 | 454.0 | 406.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -15.74 | 268.20 | 9.18 | 206.99 | 0.3399 | 756.0 | 614.9 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -12.60 | 267.83 | 8.81 | 210.98 | 0.2916 | 646.0 | 537.0 | |
| 14.13 | 38.71 | 7.48 | 20.49 | -16.95 | 267.60 | 8.58 | 203.92 | 0.3535 | 1147.4 | 456.7 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -11.62 | 267.27 | 8.26 | 211.19 | 0.2728 | 845.0 | 545.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -13.27 | 267.02 | 8.00 | 207.50 | 0.2947 | 822.0 | 609.1 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -18.61 | 266.54 | 7.53 | 199.57 | 0.3721 | 889.0 | 693.0 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -19.21 | 265.78 | 6.76 | 197.22 | 0.3774 | 752.0 | 662.9 | |
| 6.94 | 7.37 | 3.64 | 3.87 | -16.41 | 265.64 | 6.63 | 199.48 | 0.3334 | -985.6 | -807.0 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -14.40 | 265.15 | 6.13 | 200.32 | 0.2992 | 487.0 | 383.2 | |
| 0.00 | 1.88 | 0.00 | 0.99 | -16.82 | 265.16 | 6.14 | 197.77 | 0.3372 | -930.0 | -654.4 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -17.16 | 264.30 | 5.28 | 195.13 | 0.3385 | -703.0 | -593.0 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -17.03 | 263.99 | 4.97 | 194.37 | 0.3352 | -824.0 | -620.7 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -18.38 | 263.96 | 4.94 | 193.32 | 0.3566 | -760.0 | -627.6 | |
| 0.00 | 5.74 | 0.00 | 3.02 | -17.19 | 263.77 | 4.76 | 193.66 | 0.3368 | -1090.0 | -875.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -18.25 | 263.65 | 4.63 | 192.58 | 0.3534 | -748.0 | -629.8 | |
| 2.57 | 3.68 | 1.35 | 1.93 | -17.03 | 263.52 | 4.50 | 193.07 | 0.3333 | -1076.9 | -984.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -17.31 | 263.50 | 4.48 | 192.81 | 0.3378 | -881.0 | -719.9 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -18.00 | 263.45 | 4.43 | 192.23 | 0.3487 | -771.0 | -510.2 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -16.19 | 263.38 | 4.36 | 193.28 | 0.3192 | -876.0 | -666.5 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -16.72 | 263.23 | 4.22 | 192.48 | 0.3273 | -907.0 | -684.2 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -18.06 | 262.24 | 3.22 | 188.91 | 0.3460 | -618.0 | -549.7 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -18.95 | 261.75 | 2.73 | 187.25 | 0.3592 | -616.0 | -510.7 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -15.34 | 256.79 | -2.23 | 172.76 | 0.2991 | -871.0 | -567.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
