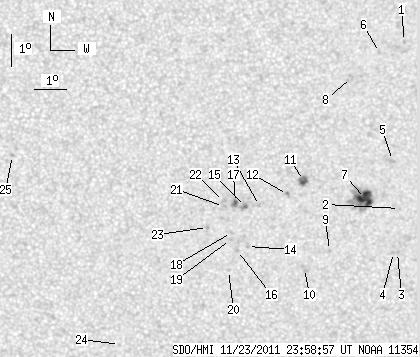

SDO HMI 2011-11-23 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.92 | 83.87 | 11.59 | 44.31 | -16.98 | 266.05 | 7.59 | 201.38 | 0.3498 | 15.9 | 92.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.58 | -12.12 | 268.61 | 10.14 | 215.58 | 0.2972 | 880.0 | 700.3 | |
| 0.00 | 0.34 | 0.00 | 0.18 | -17.28 | 268.70 | 10.23 | 207.42 | 0.3699 | 648.0 | 747.5 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -18.67 | 268.72 | 10.25 | 205.74 | 0.3899 | 773.0 | 594.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -18.67 | 268.59 | 10.12 | 205.46 | 0.3890 | 713.0 | 549.0 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -15.78 | 268.40 | 9.93 | 208.78 | 0.3462 | 844.0 | 768.3 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -12.46 | 267.85 | 9.39 | 212.88 | 0.2946 | 806.0 | 612.8 | |
| 13.53 | 37.69 | 7.17 | 19.97 | -16.96 | 267.61 | 9.15 | 205.29 | 0.3574 | 1119.8 | 527.8 | |
| 0.00 | 2.66 | 0.00 | 1.38 | -13.22 | 267.02 | 8.55 | 209.19 | 0.2983 | 567.0 | 574.1 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -18.59 | 266.56 | 8.09 | 200.95 | 0.3749 | 860.0 | 727.1 | |
| 0.00 | 3.77 | 0.00 | 2.02 | -19.16 | 265.80 | 7.33 | 198.61 | 0.3793 | 726.0 | 603.0 | |
| 5.05 | 6.60 | 2.66 | 3.47 | -16.39 | 265.65 | 7.19 | 201.01 | 0.3362 | -969.9 | -926.7 | |
| 0.00 | 2.14 | 0.00 | 1.13 | -16.83 | 265.17 | 6.70 | 199.27 | 0.3402 | -861.0 | -676.0 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -17.17 | 264.31 | 5.84 | 196.65 | 0.3411 | -776.0 | -597.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -18.46 | 263.98 | 5.51 | 194.73 | 0.3599 | -847.0 | -658.7 | |
| 1.28 | 3.94 | 0.68 | 2.07 | -17.20 | 263.88 | 5.41 | 195.45 | 0.3396 | -981.3 | -882.7 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -18.58 | 263.67 | 5.20 | 193.85 | 0.3606 | -861.0 | -638.6 | |
| 2.06 | 3.77 | 1.08 | 1.98 | -17.07 | 263.56 | 5.10 | 194.69 | 0.3362 | -1077.0 | -944.8 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -18.01 | 263.46 | 5.00 | 193.72 | 0.3508 | -790.0 | -520.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -18.23 | 263.44 | 4.97 | 193.50 | 0.3542 | -735.0 | -610.7 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -19.21 | 263.40 | 4.94 | 192.76 | 0.3697 | -852.0 | -631.8 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -17.20 | 263.19 | 4.73 | 193.58 | 0.3367 | -836.0 | -589.5 | |
| 0.00 | 3.00 | 0.00 | 1.57 | -17.04 | 263.19 | 4.72 | 193.68 | 0.3342 | -866.0 | -601.3 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -17.85 | 262.71 | 4.24 | 191.82 | 0.3455 | -903.0 | -693.9 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -21.57 | 260.01 | 1.54 | 183.60 | 0.3997 | -682.0 | -482.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -15.60 | 256.67 | -1.80 | 174.23 | 0.3024 | -908.0 | -663.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
