SDO HMI 2011-11-24 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.96 | 212.44 | 16.01 | 130.12 | -24.38 | 283.18 | 25.26 | 221.39 | 0.5894 | 269.3 | 185.7 | |
|
previous
or next observation for the same group /

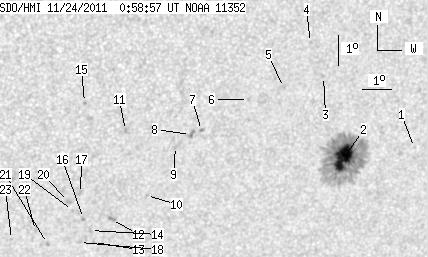

back to the solar disc SDO HMI 2011-11-24 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.86 | -24.04 | 286.80 | 28.88 | 225.55 | 0.6201 | 638.0 | 502.5 | |
| 25.96 | 176.38 | 16.01 | 108.88 | -24.33 | 284.26 | 26.34 | 222.73 | 0.5982 | 1181.2 | 321.3 | |
| 0.00 | 1.97 | 0.00 | 1.18 | -21.67 | 283.00 | 25.08 | 224.86 | 0.5607 | 704.0 | 595.1 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -20.57 | 282.35 | 24.43 | 225.67 | 0.5435 | 685.0 | 457.6 | |
| 0.00 | 1.46 | 0.00 | 0.86 | -22.01 | 281.66 | 23.74 | 222.91 | 0.5504 | 710.0 | 510.2 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -22.38 | 280.51 | 22.59 | 221.06 | 0.5429 | 830.0 | 624.1 | |
| 0.00 | 1.97 | 0.00 | 1.16 | -23.37 | 279.05 | 21.13 | 217.99 | 0.5398 | -684.0 | -520.5 | |
| 0.00 | 4.20 | 0.00 | 2.46 | -23.50 | 278.69 | 20.77 | 217.37 | 0.5379 | -928.0 | -752.4 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -23.89 | 278.23 | 20.32 | 216.31 | 0.5382 | -523.0 | -436.9 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -25.50 | 277.50 | 19.58 | 213.48 | 0.5505 | -570.0 | -407.2 | |
| 0.00 | 1.71 | 0.00 | 0.99 | -23.34 | 276.43 | 18.52 | 214.54 | 0.5164 | -893.0 | -722.0 | |
| 0.00 | 3.08 | 0.00 | 1.83 | -26.29 | 276.41 | 18.49 | 211.19 | 0.5513 | -734.0 | -691.3 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -27.06 | 275.91 | 17.99 | 209.73 | 0.5569 | -583.0 | -484.5 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -26.66 | 275.74 | 17.82 | 209.91 | 0.5507 | -656.0 | -587.2 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -22.42 | 274.92 | 17.01 | 213.46 | 0.4925 | -772.0 | -711.6 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -26.25 | 275.43 | 17.52 | 209.91 | 0.5435 | -831.0 | -773.4 | |
| 0.00 | 1.97 | 0.00 | 1.15 | -25.41 | 275.20 | 17.28 | 210.46 | 0.5315 | -757.0 | -711.0 | |
| 0.00 | 1.46 | 0.00 | 0.86 | -27.06 | 275.42 | 17.50 | 209.08 | 0.5533 | -682.0 | -524.6 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -25.98 | 275.01 | 17.09 | 209.60 | 0.5370 | -775.0 | -707.8 | |
| 0.00 | 2.14 | 0.00 | 1.25 | -25.67 | 274.83 | 16.91 | 209.66 | 0.5320 | -763.0 | -709.4 | |
| 0.00 | 1.71 | 0.00 | 1.01 | -27.08 | 274.31 | 16.40 | 207.53 | 0.5459 | -693.0 | -580.0 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -26.64 | 273.83 | 15.92 | 207.28 | 0.5370 | -702.0 | -575.5 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -26.93 | 273.05 | 15.13 | 205.86 | 0.5356 | -697.0 | -543.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
