SDO HMI 2011-11-24 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.59 | 144.53 | 24.96 | 171.86 | 19.18 | 193.46 | -64.46 | 69.68 | 0.9095 | -531.7 | -135.8 | |
|
previous
or next observation for the same group /

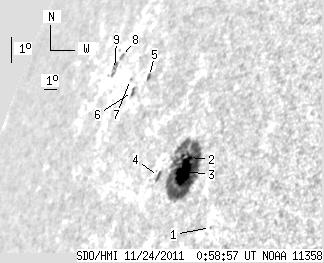

back to the solar disc SDO HMI 2011-11-24 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.71 | 17.16 | 197.23 | -60.68 | 71.43 | 0.8809 | -359.0 | -314.5 | |
| 1.03 | 127.46 | 1.17 | 146.45 | 19.26 | 194.51 | -63.41 | 69.46 | 0.9033 | -665.8 | -199.9 | |
| 18.93 | -2.00 | 21.69 | -2.00 | 18.82 | 194.39 | -63.53 | 69.96 | 0.9037 | -736.9 | 999999 | |
| 1.03 | 3.26 | 1.25 | 3.96 | 18.62 | 192.71 | -65.21 | 70.39 | 0.9150 | -328.4 | -230.8 | |
| 0.60 | 1.80 | 0.85 | 2.55 | 21.67 | 189.32 | -68.60 | 67.50 | 0.9380 | -143.1 | 16.2 | |
| 0.00 | 2.66 | 0.00 | 3.91 | 21.17 | 188.31 | -69.61 | 68.14 | 0.9433 | 507.0 | 442.5 | |
| 0.00 | 0.77 | 0.00 | 1.17 | 21.53 | 187.73 | -70.19 | 67.82 | 0.9466 | 481.0 | 405.0 | |
| 0.00 | 2.06 | 0.00 | 3.39 | 22.22 | 186.02 | -71.90 | 67.26 | 0.9554 | 350.0 | 288.1 | |
| 0.00 | 5.83 | 0.00 | 9.72 | 21.80 | 185.81 | -72.10 | 67.72 | 0.9562 | 387.0 | 247.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
