SDO HMI 2011-11-24 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.59 | 76.29 | 9.39 | 38.56 | 8.64 | 258.34 | 0.98 | 204.65 | 0.1936 | -17.5 | 88.6 | |
|
previous
or next observation for the same group /

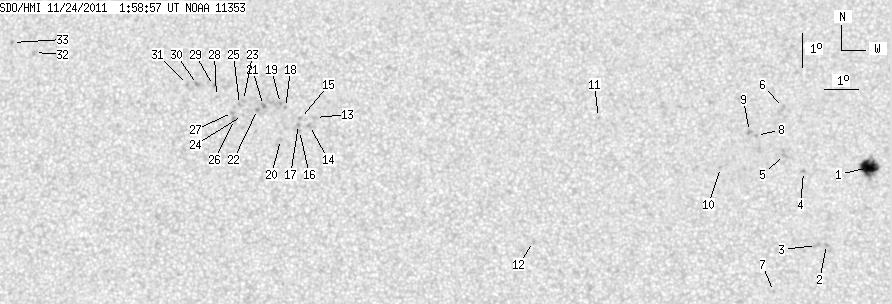

back to the solar disc SDO HMI 2011-11-24 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.59 | 25.19 | 9.39 | 12.73 | 7.98 | 266.95 | 9.59 | 303.18 | 0.1980 | -1172.6 | -624.0 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 5.70 | 265.64 | 8.28 | 295.43 | 0.1594 | -918.0 | -694.2 | |
| 0.00 | 3.26 | 0.00 | 1.63 | 5.67 | 265.34 | 7.98 | 296.08 | 0.1545 | -839.0 | -746.4 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 7.87 | 264.99 | 7.62 | 308.84 | 0.1695 | -974.0 | -800.2 | |
| 0.00 | 4.11 | 0.00 | 2.07 | 8.38 | 264.42 | 7.06 | 313.31 | 0.1678 | -959.0 | -691.2 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 9.78 | 264.42 | 7.06 | 318.92 | 0.1851 | -753.0 | -601.1 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 4.31 | 264.04 | 6.67 | 290.72 | 0.1245 | -795.0 | -547.1 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 8.95 | 263.59 | 6.22 | 319.27 | 0.1649 | -978.0 | -831.8 | |
| 0.00 | 2.48 | 0.00 | 1.25 | 9.07 | 263.38 | 6.02 | 320.70 | 0.1642 | -843.0 | -743.6 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 8.00 | 262.49 | 5.13 | 320.63 | 0.1402 | -982.0 | -731.9 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 9.49 | 258.85 | 1.48 | 349.19 | 0.1367 | -818.0 | -566.9 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 5.81 | 256.90 | -0.46 | 6.59 | 0.0704 | -753.0 | -559.8 | |
| 0.00 | 2.06 | 0.00 | 1.04 | 9.48 | 250.34 | -7.02 | 42.06 | 0.1809 | 811.0 | 610.7 | |
| 0.00 | 2.06 | 0.00 | 1.04 | 9.24 | 250.17 | -7.20 | 43.68 | 0.1800 | 1006.0 | 823.5 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 9.45 | 249.89 | -7.48 | 43.95 | 0.1858 | 954.0 | 722.9 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 9.09 | 249.87 | -7.50 | 45.43 | 0.1818 | 942.0 | 741.0 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 9.27 | 249.83 | -7.53 | 44.85 | 0.1843 | 1019.0 | 817.7 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 9.78 | 249.43 | -7.94 | 44.43 | 0.1953 | 1017.0 | 859.3 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 9.90 | 249.27 | -8.09 | 44.55 | 0.1986 | 1170.0 | 970.4 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 8.82 | 249.30 | -8.07 | 48.59 | 0.1858 | 954.0 | 734.5 | |
| 0.00 | 2.06 | 0.00 | 1.04 | 9.83 | 248.76 | -8.61 | 46.51 | 0.2042 | 1142.0 | 968.0 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 9.71 | 248.58 | -8.79 | 47.53 | 0.2051 | 1102.0 | 908.3 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 9.98 | 248.15 | -9.22 | 47.92 | 0.2136 | 1006.0 | 803.5 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 9.53 | 248.13 | -9.24 | 49.61 | 0.2088 | 736.0 | 596.3 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 9.86 | 248.03 | -9.34 | 48.71 | 0.2138 | 993.0 | 810.1 | |
| 0.00 | 2.74 | 0.00 | 1.39 | 9.41 | 247.89 | -9.48 | 50.77 | 0.2107 | 912.0 | 730.0 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 9.62 | 247.82 | -9.54 | 50.19 | 0.2138 | 749.0 | 707.2 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 10.10 | 247.32 | -10.05 | 49.92 | 0.2255 | 912.0 | 652.7 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 10.42 | 247.22 | -10.15 | 49.08 | 0.2304 | 965.0 | 832.9 | |
| 0.00 | 2.14 | 0.00 | 1.09 | 10.45 | 246.73 | -10.64 | 50.30 | 0.2371 | 1125.0 | 884.0 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 10.45 | 246.42 | -10.95 | 51.09 | 0.2411 | 920.0 | 685.2 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 11.37 | 241.64 | -15.73 | 57.81 | 0.3154 | 564.0 | 491.8 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 11.67 | 240.93 | -16.44 | 58.11 | 0.3279 | 901.0 | 766.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
