SDO HMI 2011-11-24 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.68 | 78.13 | 9.45 | 39.52 | 8.87 | 257.07 | 0.25 | 183.30 | 0.1978 | -66.6 | 207.5 | |
|
previous
or next observation for the same group /

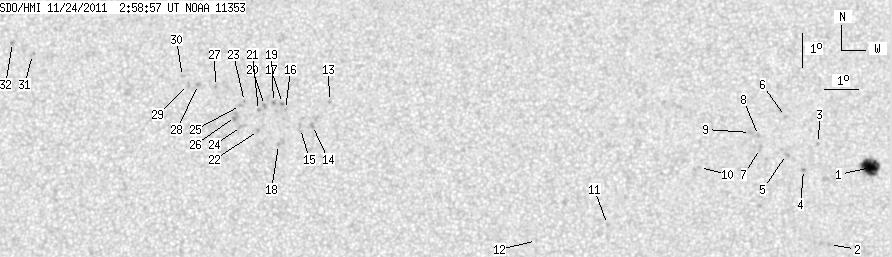

back to the solar disc SDO HMI 2011-11-24 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.68 | 24.33 | 9.45 | 12.31 | 7.97 | 266.98 | 10.16 | 301.70 | 0.2064 | -1197.3 | -801.5 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 5.69 | 265.70 | 8.88 | 293.94 | 0.1688 | -796.0 | -692.5 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 8.70 | 265.42 | 8.61 | 309.13 | 0.1916 | -872.0 | -681.7 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 7.92 | 264.95 | 8.14 | 307.33 | 0.1771 | -1007.0 | -803.1 | |
| 0.00 | 2.06 | 0.00 | 1.03 | 8.37 | 264.45 | 7.63 | 311.11 | 0.1752 | -887.0 | -744.9 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 9.51 | 264.44 | 7.63 | 315.74 | 0.1884 | -895.0 | -693.9 | |
| 0.00 | 2.48 | 0.00 | 1.25 | 8.55 | 263.67 | 6.85 | 314.95 | 0.1674 | -873.0 | -619.2 | |
| 0.00 | 1.97 | 0.00 | 0.99 | 8.94 | 263.62 | 6.80 | 316.79 | 0.1716 | -1013.0 | -754.7 | |
| 0.00 | 1.88 | 0.00 | 0.95 | 9.03 | 263.38 | 6.56 | 318.17 | 0.1699 | -852.0 | -723.9 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 7.99 | 261.83 | 5.01 | 321.31 | 0.1389 | -905.0 | -652.3 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 6.31 | 259.06 | 2.25 | 333.61 | 0.0880 | -895.0 | -590.6 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 5.83 | 256.95 | 0.13 | 358.14 | 0.0706 | -926.0 | -680.7 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 9.96 | 250.72 | -6.10 | 36.37 | 0.1772 | 838.0 | 635.7 | |
| 0.00 | 2.66 | 0.00 | 1.34 | 9.24 | 250.22 | -6.60 | 41.18 | 0.1730 | 1044.0 | 812.3 | |
| 0.00 | 3.77 | 0.00 | 1.90 | 9.15 | 249.86 | -6.96 | 43.04 | 0.1760 | 577.0 | 680.9 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 9.71 | 249.40 | -7.42 | 42.72 | 0.1886 | 1048.0 | 807.8 | |
| 0.00 | 1.46 | 0.00 | 0.73 | 9.89 | 249.30 | -7.52 | 42.43 | 0.1919 | 950.0 | 888.1 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 8.67 | 249.21 | -7.61 | 47.54 | 0.1783 | 883.0 | 663.7 | |
| 0.00 | 2.06 | 0.00 | 1.04 | 9.92 | 249.03 | -7.79 | 43.34 | 0.1955 | 1121.0 | 916.1 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 9.83 | 248.76 | -8.06 | 44.63 | 0.1976 | 1208.0 | 986.2 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 9.68 | 248.58 | -8.24 | 45.80 | 0.1980 | 987.0 | 843.2 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 9.08 | 248.59 | -8.23 | 48.04 | 0.1909 | 952.0 | 719.4 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 9.95 | 248.15 | -8.67 | 46.28 | 0.2064 | 957.0 | 786.0 | |
| 0.00 | 2.91 | 0.00 | 1.47 | 9.20 | 248.07 | -8.74 | 49.29 | 0.1989 | 758.0 | 645.6 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 9.83 | 248.03 | -8.79 | 47.09 | 0.2065 | 1011.0 | 798.5 | |
| 0.00 | 4.54 | 0.00 | 2.30 | 9.50 | 247.89 | -8.93 | 48.76 | 0.2046 | 826.0 | 780.9 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 10.39 | 247.25 | -9.57 | 47.51 | 0.2227 | 987.0 | 716.9 | |
| 0.00 | 1.88 | 0.00 | 0.96 | 10.45 | 246.73 | -10.09 | 48.80 | 0.2300 | 1097.0 | 881.4 | |
| 0.00 | 1.97 | 0.00 | 1.00 | 10.45 | 246.42 | -10.39 | 49.64 | 0.2339 | 915.0 | 676.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 10.69 | 246.23 | -10.59 | 49.36 | 0.2390 | 659.0 | 570.6 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 11.31 | 241.56 | -15.26 | 57.19 | 0.3084 | 739.0 | 649.2 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 11.67 | 240.91 | -15.90 | 57.26 | 0.3205 | 983.0 | 782.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
