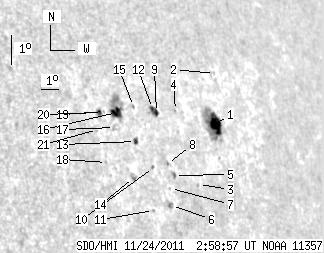

SDO HMI 2011-11-24 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.87 | 96.40 | 28.07 | 92.75 | 18.62 | 314.63 | 57.81 | 290.75 | 0.8588 | -116.6 | -154.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.56 | 40.61 | 15.14 | 41.97 | 18.68 | 317.29 | 60.47 | 290.33 | 0.8810 | -616.0 | -459.8 | |
| 0.00 | 0.69 | 0.00 | 0.74 | 20.22 | 318.22 | 61.40 | 291.91 | 0.8899 | -286.0 | -215.6 | |
| 0.00 | 0.86 | 0.00 | 0.83 | 16.84 | 315.24 | 58.42 | 288.56 | 0.8622 | -533.0 | -412.8 | |
| 0.00 | 0.94 | 0.00 | 0.92 | 19.14 | 315.09 | 58.27 | 291.23 | 0.8640 | -427.0 | -314.6 | |
| 0.00 | 1.97 | 0.00 | 1.85 | 17.15 | 313.99 | 57.17 | 289.13 | 0.8519 | 484.0 | 377.0 | |
| 0.00 | 2.74 | 0.00 | 2.53 | 16.24 | 313.39 | 56.57 | 288.16 | 0.8455 | -647.0 | -513.4 | |
| 0.00 | 0.69 | 0.00 | 0.64 | 16.76 | 313.57 | 56.75 | 288.74 | 0.8478 | -351.0 | -322.2 | |
| 0.00 | 1.29 | 0.00 | 1.20 | 17.53 | 313.77 | 56.95 | 289.60 | 0.8505 | 367.0 | 345.5 | |
| 1.63 | 6.68 | 1.54 | 6.31 | 19.11 | 313.94 | 57.13 | 291.40 | 0.8545 | -408.9 | -519.6 | |
| 0.00 | 1.11 | 0.00 | 1.02 | 17.43 | 312.92 | 56.10 | 289.64 | 0.8430 | 521.0 | 435.1 | |
| 0.00 | 0.94 | 0.00 | 0.85 | 16.11 | 312.34 | 55.52 | 288.19 | 0.8358 | -548.0 | -492.0 | |
| 1.20 | -9.00 | 1.13 | -9.00 | 19.24 | 313.78 | 56.96 | 291.58 | 0.8533 | -625.5 | 999999 | |
| 2.06 | 2.83 | 1.86 | 2.56 | 18.25 | 312.31 | 55.49 | 290.72 | 0.8389 | 365.5 | 277.7 | |
| 0.00 | 3.26 | 0.00 | 2.89 | 17.15 | 311.69 | 54.88 | 289.54 | 0.8315 | 567.0 | 262.9 | |
| 0.00 | 1.20 | 0.00 | 1.10 | 19.33 | 312.74 | 55.92 | 291.89 | 0.8445 | -366.0 | -382.0 | |
| 7.28 | 23.99 | 6.52 | 21.55 | 19.16 | 311.71 | 54.90 | 291.92 | 0.8352 | 568.8 | 239.9 | |
| 0.00 | 1.97 | 0.00 | 1.74 | 18.70 | 311.38 | 54.56 | 291.45 | 0.8313 | 215.0 | 174.7 | |
| 0.00 | 0.60 | 0.00 | 0.52 | 17.64 | 310.47 | 53.65 | 290.38 | 0.8210 | 386.0 | 403.3 | |
| 0.00 | 0.77 | 0.00 | 0.68 | 19.21 | 311.08 | 54.27 | 292.12 | 0.8296 | 328.0 | 296.3 | |
| 2.14 | 2.83 | 1.88 | 2.48 | 19.19 | 310.80 | 53.98 | 292.15 | 0.8270 | 583.7 | 596.2 | |
| 0.00 | 0.43 | 0.00 | 0.37 | 18.66 | 310.45 | 53.63 | 291.61 | 0.8228 | 445.0 | 498.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
