SDO HMI 2011-11-24 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.72 | 0.00 | 5.13 | 16.26 | 296.70 | 39.88 | 292.68 | 0.6692 | -639.1 | -523.7 | |
|
previous
or next observation for the same group /

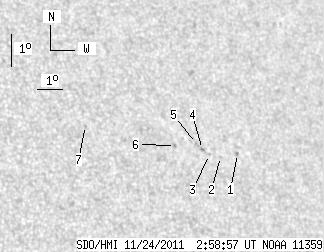

back to the solar disc SDO HMI 2011-11-24 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.87 | 16.06 | 298.31 | 41.49 | 291.74 | 0.6878 | -533.0 | -446.5 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 15.98 | 297.60 | 40.78 | 291.89 | 0.6790 | -669.0 | -510.8 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 16.05 | 297.16 | 40.35 | 292.16 | 0.6741 | -573.0 | -501.5 | |
| 0.00 | 1.88 | 0.00 | 1.26 | 16.21 | 296.92 | 40.10 | 292.48 | 0.6717 | -709.0 | -571.1 | |
| 0.00 | 1.20 | 0.00 | 0.80 | 16.40 | 296.72 | 39.91 | 292.83 | 0.6701 | -646.0 | -499.1 | |
| 0.00 | 1.37 | 0.00 | 0.90 | 16.35 | 295.87 | 39.05 | 293.11 | 0.6596 | -746.0 | -575.6 | |
| 0.00 | 0.60 | 0.00 | 0.38 | 17.03 | 292.52 | 35.70 | 295.68 | 0.6214 | -598.0 | -515.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
