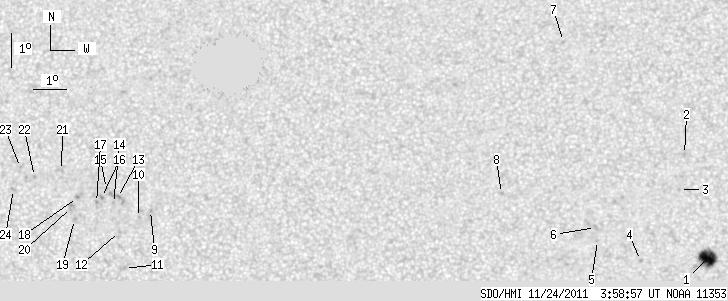

SDO HMI 2011-11-24 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.02 | 63.68 | 9.64 | 32.22 | 9.05 | 257.66 | 1.39 | 180.07 | 0.2013 | -107.3 | 290.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.02 | 24.25 | 9.64 | 12.29 | 8.02 | 266.99 | 10.71 | 300.61 | 0.2149 | -1188.9 | -738.1 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 11.10 | 266.38 | 10.11 | 313.27 | 0.2376 | -789.0 | -626.9 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 10.05 | 266.19 | 9.92 | 310.33 | 0.2236 | -782.0 | -563.9 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 7.94 | 264.95 | 8.68 | 305.68 | 0.1849 | -1063.0 | -873.6 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 8.54 | 263.67 | 7.40 | 312.75 | 0.1742 | -958.0 | -719.7 | |
| 0.00 | 2.14 | 0.00 | 1.08 | 8.93 | 263.61 | 7.34 | 314.58 | 0.1781 | -879.0 | -727.4 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 14.52 | 262.78 | 6.51 | 333.54 | 0.2474 | -793.0 | -650.7 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 9.95 | 260.80 | 4.53 | 331.30 | 0.1626 | -826.0 | -615.1 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 9.44 | 250.25 | -6.03 | 37.87 | 0.1695 | 915.0 | 774.1 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 9.23 | 249.89 | -6.38 | 40.27 | 0.1706 | 865.0 | 712.6 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 7.71 | 249.49 | -6.78 | 48.57 | 0.1567 | 848.0 | 610.2 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 8.81 | 249.32 | -6.95 | 44.34 | 0.1718 | 916.0 | 627.7 | |
| 0.00 | 7.71 | 0.00 | 3.89 | 9.82 | 249.24 | -7.03 | 40.76 | 0.1856 | 984.0 | 841.4 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 9.64 | 249.12 | -7.15 | 41.88 | 0.1846 | 867.0 | 753.2 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 10.09 | 248.90 | -7.37 | 41.14 | 0.1928 | 746.0 | 609.4 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 9.82 | 248.76 | -7.51 | 42.65 | 0.1911 | 1166.0 | 932.4 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 9.67 | 248.61 | -7.66 | 43.75 | 0.1910 | 963.0 | 871.9 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 9.82 | 248.03 | -8.24 | 45.28 | 0.1997 | 1067.0 | 866.2 | |
| 0.00 | 1.88 | 0.00 | 0.95 | 9.16 | 247.95 | -8.32 | 48.01 | 0.1930 | 768.0 | 673.1 | |
| 0.00 | 3.26 | 0.00 | 1.65 | 9.52 | 247.85 | -8.42 | 46.97 | 0.1984 | 540.0 | 754.9 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 10.62 | 247.52 | -8.75 | 44.18 | 0.2155 | 674.0 | 533.8 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 10.44 | 246.70 | -9.57 | 47.32 | 0.2234 | 1020.0 | 832.6 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 10.71 | 246.27 | -10.00 | 47.69 | 0.2319 | 761.0 | 614.7 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 10.05 | 246.07 | -10.20 | 50.43 | 0.2272 | 948.0 | 665.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
