SDO HMI 2011-11-24 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.97 | 326.35 | 27.39 | 166.02 | 14.09 | 252.07 | -4.20 | 17.94 | 0.2266 | -661.1 | -382.3 | |
|
previous
or next observation for the same group /

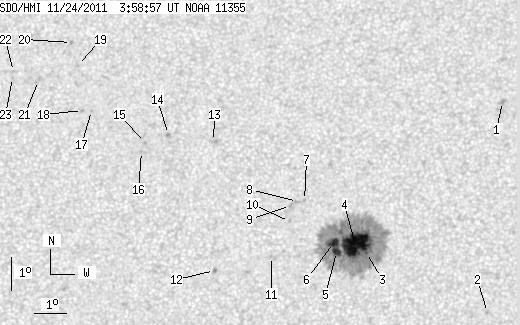

back to the solar disc SDO HMI 2011-11-24 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.34 | 0.00 | 1.73 | 18.20 | 257.13 | 0.86 | 357.12 | 0.2841 | -919.0 | -737.1 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 11.78 | 256.65 | 0.38 | 357.87 | 0.1744 | -917.0 | -690.6 | |
| 1.11 | 297.48 | 0.56 | 150.98 | 13.59 | 252.97 | -3.31 | 15.33 | 0.2130 | -1187.4 | -454.8 | |
| 39.58 | -3.00 | 20.09 | -3.00 | 13.83 | 252.63 | -3.64 | 16.48 | 0.2185 | -1415.3 | 999999 | |
| 5.91 | -3.00 | 3.00 | -3.00 | 13.62 | 252.05 | -4.22 | 19.24 | 0.2181 | -1230.3 | 999999 | |
| 7.37 | -3.00 | 3.74 | -3.00 | 13.89 | 251.95 | -4.32 | 19.22 | 0.2230 | -1081.3 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 15.16 | 251.04 | -5.23 | 20.84 | 0.2486 | -750.0 | -494.8 | |
| 0.00 | 2.06 | 0.00 | 1.05 | 15.13 | 250.82 | -5.45 | 21.66 | 0.2495 | -774.0 | -636.2 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 15.01 | 250.61 | -5.66 | 22.62 | 0.2489 | -815.0 | -692.2 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 14.52 | 250.59 | -5.68 | 23.49 | 0.2415 | -833.0 | -584.3 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 13.46 | 250.07 | -6.20 | 27.44 | 0.2291 | 941.0 | 739.2 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 13.03 | 248.33 | -7.94 | 34.58 | 0.2381 | 984.0 | 818.2 | |
| 0.00 | 1.88 | 0.00 | 0.98 | 16.95 | 248.15 | -8.12 | 27.29 | 0.2959 | 858.0 | 707.3 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 17.16 | 246.73 | -9.54 | 30.81 | 0.3104 | 967.0 | 836.1 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 16.91 | 246.02 | -10.25 | 33.08 | 0.3132 | 906.0 | 791.5 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 16.64 | 245.91 | -10.36 | 33.87 | 0.3105 | 853.0 | 657.2 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 17.89 | 244.26 | -12.01 | 35.49 | 0.3427 | 861.0 | 729.5 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 17.89 | 243.97 | -12.30 | 36.12 | 0.3455 | 801.0 | 616.2 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 19.28 | 243.71 | -12.56 | 34.29 | 0.3660 | 956.0 | 705.3 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 19.99 | 243.46 | -12.81 | 33.66 | 0.3777 | 834.0 | 630.8 | |
| 0.00 | 3.43 | 0.00 | 1.83 | 18.80 | 242.49 | -13.78 | 37.55 | 0.3716 | 828.0 | 592.7 | |
| 0.00 | 1.71 | 0.00 | 0.92 | 19.08 | 241.66 | -14.61 | 38.66 | 0.3833 | 699.0 | 623.8 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 18.89 | 241.64 | -14.63 | 39.01 | 0.3812 | 684.0 | 522.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
