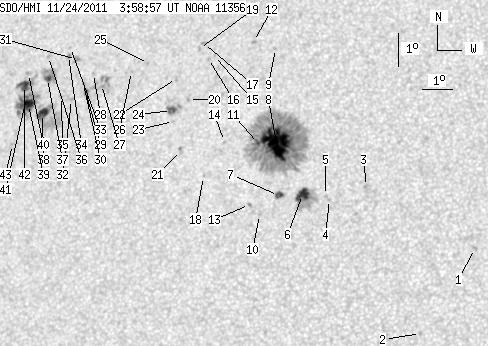

SDO HMI 2011-11-24 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.79 | 494.94 | 53.73 | 277.41 | 15.17 | 231.68 | -24.59 | 59.47 | 0.4662 | -450.6 | -188.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.97 | 0.00 | 1.03 | 11.69 | 240.90 | -15.37 | 56.32 | 0.3133 | 800.0 | 684.6 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 9.13 | 239.35 | -16.93 | 65.82 | 0.3165 | 808.0 | 613.9 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 13.53 | 237.34 | -18.93 | 56.97 | 0.3778 | -446.0 | -469.9 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 13.12 | 236.18 | -20.09 | 59.34 | 0.3905 | 726.0 | 511.4 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 13.24 | 236.04 | -20.23 | 59.23 | 0.3934 | 165.0 | 200.4 | |
| 10.45 | 35.56 | 5.65 | 19.21 | 13.27 | 235.29 | -20.98 | 60.03 | 0.4039 | -1107.5 | -493.7 | |
| 3.86 | 4.80 | 2.10 | 2.61 | 13.23 | 234.51 | -21.76 | 60.96 | 0.4145 | -897.5 | -810.1 | |
| 47.89 | 268.77 | 26.24 | 147.25 | 14.83 | 234.29 | -21.98 | 57.81 | 0.4294 | -1345.0 | -442.5 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 17.70 | 233.91 | -22.36 | 52.68 | 0.4577 | -854.0 | -631.3 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 12.65 | 233.94 | -22.33 | 62.79 | 0.4186 | -778.0 | -590.5 | |
| 1.03 | -8.00 | 0.57 | -8.00 | 14.79 | 233.69 | -22.58 | 58.52 | 0.4371 | -824.3 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.01 | 17.91 | 233.14 | -23.13 | 53.17 | 0.4690 | -757.0 | -600.9 | |
| 0.00 | 1.46 | 0.00 | 0.80 | 12.95 | 233.59 | -22.68 | 62.49 | 0.4256 | -628.0 | -473.4 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 14.84 | 232.56 | -23.72 | 59.58 | 0.4527 | -697.0 | -528.5 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 17.46 | 231.88 | -24.39 | 55.31 | 0.4812 | -627.0 | -503.4 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 17.37 | 231.69 | -24.58 | 55.67 | 0.4828 | -746.0 | -620.1 | |
| 0.00 | 1.88 | 0.00 | 1.07 | 17.83 | 231.45 | -24.82 | 55.09 | 0.4894 | -787.0 | -592.6 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 13.77 | 231.97 | -24.30 | 62.25 | 0.4534 | -729.0 | -554.3 | |
| 0.00 | 1.88 | 0.00 | 1.07 | 17.67 | 231.33 | -24.94 | 55.47 | 0.4896 | -739.0 | -587.6 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 16.11 | 231.18 | -25.09 | 58.46 | 0.4800 | -930.0 | -790.7 | |
| 0.00 | 2.31 | 0.00 | 1.30 | 14.55 | 231.11 | -25.16 | 61.48 | 0.4703 | -843.0 | -703.0 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 16.74 | 230.68 | -25.59 | 57.76 | 0.4910 | -745.0 | -651.8 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 15.43 | 230.76 | -25.51 | 60.11 | 0.4808 | -706.0 | -480.3 | |
| 3.94 | 8.48 | 2.23 | 4.79 | 15.76 | 230.65 | -25.62 | 59.58 | 0.4846 | -834.4 | -774.3 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 17.19 | 229.65 | -26.62 | 57.89 | 0.5075 | -659.0 | -558.3 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 16.94 | 229.10 | -27.17 | 58.81 | 0.5128 | -792.0 | -550.7 | |
| 0.00 | 15.42 | 0.00 | 8.95 | 16.52 | 228.11 | -28.16 | 60.32 | 0.5228 | -346.0 | -448.1 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 16.86 | 227.78 | -28.49 | 60.01 | 0.5292 | -435.0 | -380.9 | |
| 1.11 | 2.91 | 0.65 | 1.70 | 16.33 | 227.58 | -28.69 | 61.06 | 0.5285 | 796.3 | 763.4 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 16.55 | 227.48 | -28.79 | 60.77 | 0.5312 | -585.0 | -377.9 | |
| 0.00 | 4.28 | 0.00 | 2.52 | 17.28 | 227.11 | -29.17 | 59.81 | 0.5405 | -777.0 | -585.2 | |
| 0.00 | 2.06 | 0.00 | 1.20 | 16.05 | 227.13 | -29.14 | 61.88 | 0.5327 | 938.0 | 703.7 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 17.64 | 226.83 | -29.44 | 59.41 | 0.5463 | -506.0 | -462.3 | |
| 0.00 | 1.88 | 0.00 | 1.11 | 17.40 | 226.80 | -29.47 | 59.84 | 0.5451 | -499.0 | -354.2 | |
| 0.00 | 1.46 | 0.00 | 0.85 | 16.14 | 226.77 | -29.50 | 61.99 | 0.5380 | 832.0 | 664.8 | |
| 0.00 | 1.20 | 0.00 | 0.71 | 17.35 | 226.09 | -30.18 | 60.43 | 0.5539 | 912.0 | 624.4 | |
| 2.83 | 17.82 | 1.67 | 10.54 | 16.68 | 226.18 | -30.10 | 61.49 | 0.5488 | 1037.3 | 685.8 | |
| 7.63 | 38.98 | 4.49 | 22.88 | 15.61 | 226.18 | -30.09 | 63.31 | 0.5427 | 957.1 | 439.0 | |
| 7.63 | 56.55 | 4.52 | 33.57 | 15.88 | 225.63 | -30.64 | 63.21 | 0.5513 | 1114.9 | 643.3 | |
| 0.00 | 2.06 | 0.00 | 1.23 | 16.82 | 225.47 | -30.80 | 61.74 | 0.5587 | 253.0 | 278.1 | |
| 1.71 | -39.00 | 1.02 | -39.00 | 16.09 | 225.53 | -30.75 | 62.92 | 0.5538 | 963.1 | 999999 | |
| 7.71 | -39.00 | 4.59 | -39.00 | 16.45 | 225.39 | -30.88 | 62.40 | 0.5576 | 904.7 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.86 | 14.65 | 225.26 | -31.01 | 65.53 | 0.5498 | 586.0 | 579.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
