SDO HMI 2011-11-24 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.42 | 162.96 | 27.67 | 183.95 | 19.23 | 193.33 | -62.95 | 69.41 | 0.8989 | -414.3 | -141.5 | |
|
previous
or next observation for the same group /

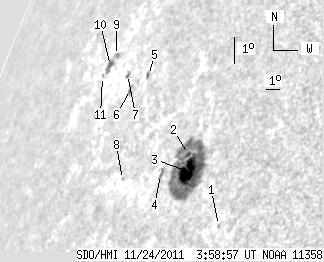

back to the solar disc SDO HMI 2011-11-24 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 1.35 | 17.19 | 197.37 | -58.91 | 71.11 | 0.8667 | -372.0 | -330.8 | |
| 1.37 | 139.14 | 1.50 | 151.01 | 19.32 | 194.20 | -62.07 | 69.20 | 0.8938 | -229.6 | -204.5 | |
| 20.31 | -2.00 | 22.00 | -2.00 | 18.79 | 194.48 | -61.80 | 69.74 | 0.8912 | -750.1 | 999999 | |
| 0.00 | 3.60 | 0.00 | 4.13 | 18.65 | 192.71 | -63.56 | 70.14 | 0.9038 | -435.0 | -244.1 | |
| 0.26 | 2.57 | 0.34 | 3.40 | 21.68 | 189.36 | -66.91 | 67.29 | 0.9283 | 71.3 | -11.6 | |
| 0.00 | 3.00 | 0.00 | 4.12 | 21.21 | 188.31 | -67.96 | 67.92 | 0.9342 | 593.0 | 415.9 | |
| 0.00 | 2.66 | 0.00 | 3.76 | 21.66 | 187.59 | -68.68 | 67.51 | 0.9386 | 551.0 | 446.5 | |
| 0.00 | 0.86 | 0.00 | 1.08 | 18.43 | 190.05 | -66.22 | 70.71 | 0.9216 | -173.0 | -152.6 | |
| 0.00 | 2.48 | 0.00 | 3.80 | 22.22 | 185.96 | -70.31 | 67.10 | 0.9476 | 408.0 | 294.8 | |
| 2.48 | 6.51 | 3.83 | 10.09 | 21.90 | 185.76 | -70.52 | 67.46 | 0.9485 | 334.7 | 161.9 | |
| 0.00 | 0.77 | 0.00 | 1.21 | 21.54 | 185.39 | -70.88 | 67.87 | 0.9502 | 120.0 | 78.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
