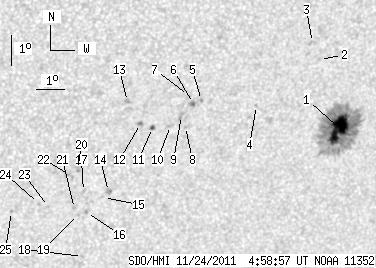

SDO HMI 2011-11-24 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.67 | 201.61 | 19.18 | 125.45 | -24.38 | 282.84 | 27.11 | 223.31 | 0.6066 | 206.4 | 165.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.50 | 159.11 | 17.29 | 100.07 | -24.30 | 284.23 | 28.51 | 224.92 | 0.6184 | 1182.1 | 338.1 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -22.03 | 282.99 | 27.26 | 226.67 | 0.5860 | 630.0 | 543.8 | |
| 0.00 | 3.00 | 0.00 | 1.82 | -21.47 | 282.62 | 26.90 | 227.06 | 0.5773 | 552.0 | 454.4 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -23.50 | 281.03 | 25.31 | 222.73 | 0.5799 | 599.0 | 460.6 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -23.30 | 279.05 | 23.32 | 220.77 | 0.5590 | -625.0 | -491.1 | |
| 1.37 | 2.48 | 0.82 | 1.48 | -23.40 | 278.78 | 23.06 | 220.34 | 0.5575 | -554.0 | -544.3 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -23.13 | 278.56 | 22.83 | 220.41 | 0.5526 | 260.0 | 345.9 | |
| 0.00 | 1.46 | 0.00 | 0.87 | -24.15 | 278.64 | 22.92 | 219.23 | 0.5640 | -522.0 | -414.4 | |
| 0.00 | 3.68 | 0.00 | 2.20 | -23.79 | 278.43 | 22.71 | 219.44 | 0.5583 | -830.0 | -568.3 | |
| 0.00 | 2.48 | 0.00 | 1.48 | -24.11 | 278.11 | 22.38 | 218.65 | 0.5587 | -451.0 | -463.2 | |
| 1.80 | 2.14 | 1.07 | 1.27 | -24.17 | 277.49 | 21.76 | 217.83 | 0.5537 | -788.9 | -582.2 | |
| 0.00 | 2.40 | 0.00 | 1.42 | -24.03 | 277.04 | 21.32 | 217.45 | 0.5483 | -921.0 | -769.2 | |
| 0.00 | 2.48 | 0.00 | 1.45 | -23.30 | 276.47 | 20.75 | 217.62 | 0.5351 | -808.0 | -706.0 | |
| 0.00 | 3.34 | 0.00 | 2.01 | -26.28 | 276.33 | 20.60 | 213.95 | 0.5673 | -723.0 | -636.8 | |
| 0.00 | 0.51 | 0.00 | 0.31 | -26.48 | 276.19 | 20.47 | 213.55 | 0.5684 | -544.0 | -485.8 | |
| 0.00 | 1.46 | 0.00 | 0.88 | -26.98 | 275.68 | 19.96 | 212.38 | 0.5701 | -821.0 | -636.7 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -26.27 | 275.45 | 19.72 | 212.84 | 0.5601 | -875.0 | -609.5 | |
| 0.00 | 1.20 | 0.00 | 0.73 | -28.48 | 275.83 | 20.10 | 211.02 | 0.5885 | -596.0 | -483.0 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -27.05 | 275.41 | 19.69 | 211.97 | 0.5688 | -661.0 | -570.8 | |
| 0.00 | 2.14 | 0.00 | 1.27 | -25.53 | 275.11 | 19.39 | 213.22 | 0.5489 | -743.0 | -707.0 | |
| 0.00 | 1.29 | 0.00 | 0.77 | -26.84 | 275.23 | 19.51 | 211.96 | 0.5651 | -638.0 | -557.5 | |
| 0.00 | 3.00 | 0.00 | 1.77 | -25.73 | 274.90 | 19.17 | 212.72 | 0.5495 | -766.0 | -662.5 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -26.76 | 274.31 | 18.58 | 210.84 | 0.5572 | -697.0 | -597.1 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -26.66 | 273.94 | 18.21 | 210.46 | 0.5532 | -700.0 | -603.5 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -26.92 | 273.04 | 17.32 | 208.99 | 0.5498 | -762.0 | -623.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
