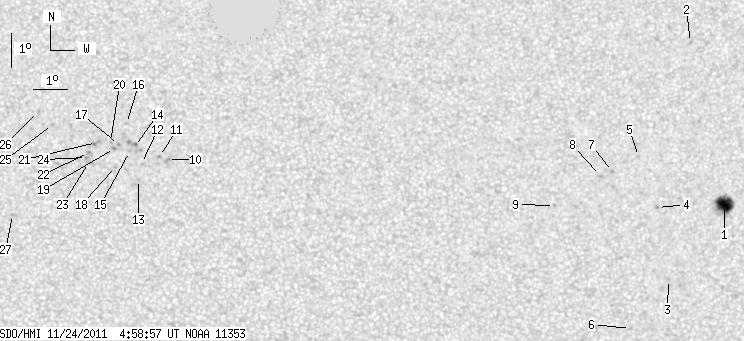

SDO HMI 2011-11-24 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.56 | 65.90 | 8.92 | 33.32 | 8.76 | 258.64 | 2.92 | 189.64 | 0.2026 | -45.1 | 179.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.56 | 28.70 | 8.92 | 14.58 | 8.01 | 266.99 | 11.26 | 299.39 | 0.2230 | -1219.9 | -671.3 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 12.86 | 266.12 | 10.39 | 317.60 | 0.2620 | -725.0 | -552.3 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 5.79 | 265.24 | 9.52 | 293.11 | 0.1797 | -765.0 | -627.0 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 7.93 | 264.95 | 9.23 | 304.07 | 0.1926 | -938.0 | -771.3 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 9.45 | 264.41 | 8.69 | 311.91 | 0.2012 | -866.0 | -652.9 | |
| 0.00 | 1.29 | 0.00 | 0.64 | 4.34 | 264.08 | 8.35 | 287.22 | 0.1524 | -903.0 | -668.6 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 9.01 | 263.61 | 7.89 | 312.90 | 0.1859 | -914.0 | -792.1 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 8.89 | 263.25 | 7.53 | 313.76 | 0.1800 | -869.0 | -736.4 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 8.00 | 261.85 | 6.12 | 315.75 | 0.1521 | -914.0 | -623.2 | |
| 0.00 | 2.06 | 0.00 | 1.03 | 9.37 | 250.24 | -5.48 | 35.48 | 0.1631 | 990.0 | 831.3 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 9.46 | 250.00 | -5.72 | 36.33 | 0.1668 | 902.0 | 700.8 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 9.25 | 249.46 | -6.26 | 39.60 | 0.1697 | 891.0 | 593.4 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 8.78 | 249.38 | -6.34 | 41.86 | 0.1644 | 951.0 | 802.6 | |
| 0.00 | 6.43 | 0.00 | 3.23 | 9.76 | 249.24 | -6.48 | 38.70 | 0.1788 | 688.0 | 874.3 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 9.61 | 249.09 | -6.63 | 39.87 | 0.1784 | 879.0 | 686.6 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 10.45 | 248.99 | -6.74 | 37.43 | 0.1907 | 901.0 | 611.6 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 9.82 | 248.76 | -6.97 | 40.50 | 0.1849 | 1108.0 | 983.5 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 9.16 | 248.68 | -7.04 | 43.28 | 0.1774 | 934.0 | 793.7 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 9.70 | 248.64 | -7.09 | 41.41 | 0.1847 | 1050.0 | 824.3 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 9.91 | 248.51 | -7.21 | 41.15 | 0.1888 | 862.0 | 684.0 | |
| 0.00 | 3.26 | 0.00 | 1.64 | 9.87 | 248.09 | -7.63 | 42.88 | 0.1932 | 914.0 | 830.8 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 9.58 | 247.85 | -7.87 | 44.83 | 0.1924 | 959.0 | 807.9 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 9.28 | 247.86 | -7.86 | 45.95 | 0.1887 | 650.0 | 574.0 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 9.43 | 247.80 | -7.93 | 45.60 | 0.1913 | 916.0 | 729.5 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 10.41 | 246.74 | -8.99 | 45.63 | 0.2159 | 1042.0 | 771.0 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 10.79 | 246.30 | -9.42 | 45.70 | 0.2258 | 754.0 | 677.3 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 7.72 | 245.60 | -10.13 | 59.22 | 0.2038 | 808.0 | 637.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
