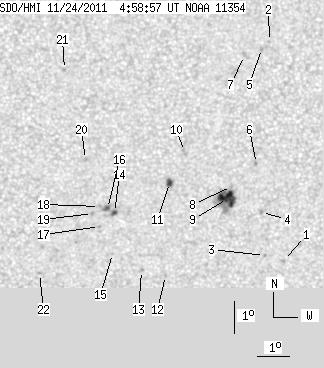

SDO HMI 2011-11-24 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.02 | 69.85 | 11.72 | 37.18 | -16.69 | 266.58 | 10.86 | 209.66 | 0.3671 | 219.5 | 238.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.97 | 0.00 | 1.07 | -18.90 | 269.51 | 13.79 | 212.62 | 0.4201 | 682.0 | 527.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -12.10 | 268.62 | 12.90 | 222.38 | 0.3252 | 945.0 | 754.0 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -18.73 | 268.89 | 13.17 | 211.66 | 0.4127 | 774.0 | 730.3 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -17.38 | 268.69 | 12.97 | 213.18 | 0.3930 | 753.0 | 673.2 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -12.31 | 268.38 | 12.66 | 221.41 | 0.3252 | 846.0 | 752.1 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -15.85 | 268.43 | 12.70 | 214.99 | 0.3705 | 919.0 | 725.1 | |
| 0.00 | 2.23 | 0.00 | 1.16 | -12.52 | 267.87 | 12.14 | 219.81 | 0.3222 | 788.0 | 644.0 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -16.56 | 267.68 | 11.96 | 212.31 | 0.3733 | 218.0 | 221.2 | |
| 14.65 | 32.04 | 7.83 | 17.13 | -16.93 | 267.58 | 11.86 | 211.54 | 0.3774 | 1090.7 | 510.8 | |
| 0.00 | 3.43 | 0.00 | 1.81 | -15.46 | 266.15 | 10.42 | 210.50 | 0.3451 | 735.0 | 636.7 | |
| 3.86 | 4.71 | 2.04 | 2.50 | -16.42 | 265.73 | 10.00 | 208.10 | 0.3553 | -1002.6 | -804.2 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -19.35 | 265.77 | 10.04 | 204.56 | 0.3976 | 744.0 | 622.6 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -19.18 | 265.00 | 9.27 | 203.06 | 0.3902 | 631.0 | 566.2 | |
| 1.03 | 2.66 | 0.54 | 1.41 | -17.35 | 264.05 | 8.33 | 202.88 | 0.3570 | -1032.9 | -909.0 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -18.64 | 264.05 | 8.32 | 201.47 | 0.3763 | -728.0 | -592.4 | |
| 2.48 | 3.00 | 1.31 | 1.59 | -17.22 | 263.82 | 8.10 | 202.47 | 0.3537 | -1054.2 | -937.0 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -17.79 | 263.60 | 7.87 | 201.29 | 0.3608 | -876.0 | -707.0 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -17.16 | 263.57 | 7.85 | 201.91 | 0.3512 | -899.0 | -677.1 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -17.38 | 263.36 | 7.64 | 201.14 | 0.3532 | -962.0 | -774.3 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -15.69 | 263.08 | 7.35 | 202.32 | 0.3259 | -906.0 | -712.1 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -12.92 | 262.34 | 6.62 | 203.90 | 0.2786 | -967.0 | -727.6 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -19.26 | 261.77 | 6.05 | 195.48 | 0.3742 | -731.0 | -588.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
