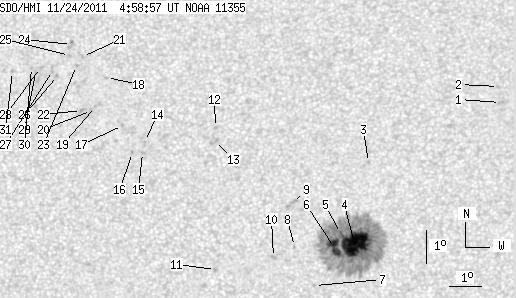

SDO HMI 2011-11-24 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.95 | 337.26 | 28.38 | 171.72 | 14.28 | 251.76 | -3.96 | 16.43 | 0.2290 | -433.8 | -331.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.93 | 18.16 | 257.08 | 1.36 | 355.44 | 0.2842 | -792.0 | -706.6 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 18.66 | 257.02 | 1.30 | 355.77 | 0.2924 | -667.0 | -539.0 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 16.32 | 253.00 | -2.73 | 10.31 | 0.2563 | -676.0 | -534.0 | |
| 41.98 | 295.51 | 21.30 | 149.90 | 13.86 | 252.60 | -3.12 | 14.20 | 0.2167 | -1403.5 | -454.0 | |
| 1.03 | -4.00 | 0.52 | -4.00 | 14.16 | 252.17 | -3.56 | 15.68 | 0.2236 | -801.0 | 999999 | |
| 12.94 | -4.00 | 6.56 | -4.00 | 13.73 | 251.99 | -3.73 | 16.98 | 0.2175 | -1164.8 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 12.59 | 251.40 | -4.32 | 21.43 | 0.2023 | -745.0 | -536.4 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 13.76 | 250.77 | -4.95 | 22.01 | 0.2249 | -758.0 | -610.5 | |
| 0.00 | 3.86 | 0.00 | 1.97 | 15.10 | 250.68 | -5.05 | 20.24 | 0.2466 | -793.0 | -650.0 | |
| 0.00 | 2.14 | 0.00 | 1.09 | 13.43 | 250.13 | -5.59 | 25.14 | 0.2241 | 879.0 | 746.7 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 13.06 | 248.37 | -7.35 | 32.50 | 0.2331 | 1012.0 | 716.9 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 17.38 | 248.22 | -7.51 | 24.87 | 0.2979 | 895.0 | 656.8 | |
| 0.00 | 3.26 | 0.00 | 1.69 | 16.95 | 248.20 | -7.52 | 25.56 | 0.2916 | 842.0 | 668.4 | |
| 0.00 | 0.43 | 0.00 | 0.22 | 16.94 | 246.01 | -9.71 | 31.65 | 0.3090 | 898.0 | 770.6 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 16.60 | 245.97 | -9.76 | 32.38 | 0.3047 | 822.0 | 713.4 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 16.60 | 245.65 | -10.07 | 33.19 | 0.3075 | 921.0 | 701.8 | |
| 0.00 | 1.37 | 0.00 | 0.72 | 17.43 | 245.29 | -10.43 | 32.60 | 0.3221 | 748.0 | 623.2 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 18.91 | 244.69 | -11.03 | 31.54 | 0.3476 | 881.0 | 619.6 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 18.01 | 244.40 | -11.32 | 33.70 | 0.3380 | 585.0 | 551.5 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 17.88 | 244.28 | -11.44 | 34.19 | 0.3374 | 827.0 | 633.4 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 19.55 | 243.88 | -11.84 | 32.32 | 0.3634 | 747.0 | 638.6 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 17.88 | 243.97 | -11.76 | 34.91 | 0.3404 | 884.0 | 660.7 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 19.27 | 243.71 | -12.02 | 33.13 | 0.3612 | 882.0 | 729.8 | |
| 0.00 | 3.86 | 0.00 | 2.06 | 19.93 | 243.50 | -12.23 | 32.55 | 0.3717 | 708.0 | 614.4 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 19.58 | 243.46 | -12.26 | 33.16 | 0.3675 | 851.0 | 611.2 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 18.96 | 243.12 | -12.60 | 34.88 | 0.3624 | 734.0 | 656.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 19.11 | 242.95 | -12.77 | 34.98 | 0.3660 | 847.0 | 711.8 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 19.20 | 242.56 | -13.17 | 35.63 | 0.3709 | 732.0 | 641.3 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 19.05 | 242.41 | -13.32 | 36.19 | 0.3703 | 814.0 | 654.1 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 19.20 | 242.27 | -13.46 | 36.22 | 0.3736 | 614.0 | 521.2 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 19.07 | 241.67 | -14.06 | 37.61 | 0.3779 | 801.0 | 641.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
