SDO HMI 2011-11-24 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.93 | 162.89 | 23.56 | 179.41 | 19.15 | 193.54 | -62.19 | 69.39 | 0.8935 | -540.3 | -142.2 | |
|
previous
or next observation for the same group /

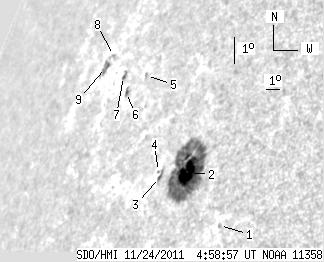

back to the solar disc SDO HMI 2011-11-24 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.58 | 17.23 | 197.40 | -58.32 | 70.96 | 0.8619 | -433.0 | -335.3 | |
| 20.65 | 141.03 | 21.98 | 150.33 | 18.81 | 194.52 | -61.21 | 69.63 | 0.8868 | -753.8 | -207.3 | |
| 0.77 | 3.86 | 0.87 | 4.33 | 18.60 | 192.76 | -62.96 | 70.11 | 0.8996 | -271.0 | -214.2 | |
| 0.00 | 0.77 | 0.00 | 0.87 | 18.79 | 192.57 | -63.15 | 69.93 | 0.9011 | -128.0 | -146.0 | |
| 0.00 | 1.63 | 0.00 | 2.10 | 21.72 | 189.35 | -66.38 | 67.17 | 0.9251 | -107.0 | -115.5 | |
| 0.00 | 2.83 | 0.00 | 3.80 | 21.15 | 188.24 | -67.49 | 67.91 | 0.9314 | 512.0 | 401.9 | |
| 0.51 | 3.26 | 0.71 | 4.51 | 21.64 | 187.51 | -68.22 | 67.48 | 0.9360 | 480.7 | 404.6 | |
| 0.00 | 1.37 | 0.00 | 2.05 | 22.27 | 185.94 | -69.79 | 66.99 | 0.9450 | 324.0 | 280.5 | |
| 0.00 | 6.51 | 0.00 | 9.84 | 21.88 | 185.62 | -70.10 | 67.44 | 0.9464 | 325.0 | 248.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
