SDO HMI 2011-11-24 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.59 | 70.70 | 9.46 | 35.75 | 8.87 | 259.67 | 4.50 | 212.43 | 0.2023 | -318.8 | 10.2 | |
|
previous
or next observation for the same group /

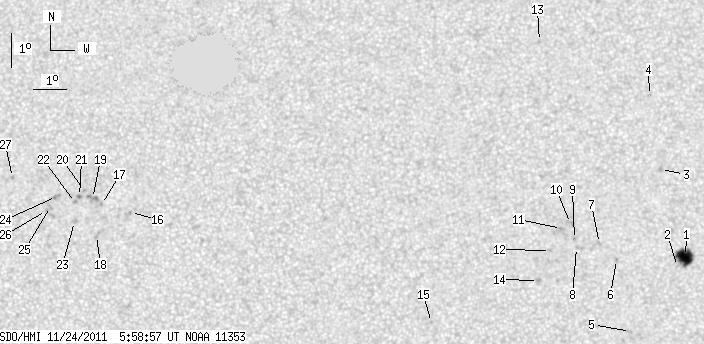

back to the solar disc SDO HMI 2011-11-24 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.59 | 23.05 | 9.46 | 11.73 | 8.03 | 267.02 | 11.84 | 298.32 | 0.2319 | -1201.4 | -783.9 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 7.73 | 266.77 | 11.59 | 297.66 | 0.2258 | -286.0 | -305.3 | |
| 0.00 | 2.31 | 0.00 | 1.18 | 10.63 | 266.34 | 11.16 | 309.06 | 0.2462 | -809.0 | -662.9 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 12.85 | 266.09 | 10.91 | 316.22 | 0.2680 | -746.0 | -612.5 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 5.81 | 265.30 | 10.12 | 292.04 | 0.1894 | -684.0 | -565.1 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 7.95 | 264.92 | 9.74 | 302.79 | 0.2002 | -899.0 | -719.9 | |
| 0.00 | 1.97 | 0.00 | 1.00 | 8.43 | 264.41 | 9.24 | 306.20 | 0.1977 | -745.0 | -638.7 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 8.31 | 263.72 | 8.54 | 307.85 | 0.1869 | -811.0 | -572.1 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 8.55 | 263.66 | 8.48 | 309.04 | 0.1886 | -962.0 | -763.5 | |
| 0.00 | 3.77 | 0.00 | 1.90 | 9.03 | 263.55 | 8.37 | 311.35 | 0.1924 | -593.0 | -672.5 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 8.88 | 263.27 | 8.10 | 311.69 | 0.1872 | -929.0 | -805.6 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 8.23 | 262.93 | 7.75 | 310.15 | 0.1754 | -893.0 | -652.6 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 14.50 | 262.76 | 7.58 | 329.91 | 0.2560 | -843.0 | -580.4 | |
| 0.00 | 2.14 | 0.00 | 1.07 | 7.34 | 262.55 | 7.37 | 307.34 | 0.1608 | -944.0 | -720.3 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 6.10 | 259.33 | 4.15 | 316.32 | 0.1047 | -950.0 | -695.8 | |
| 0.00 | 1.29 | 0.00 | 0.64 | 9.37 | 250.33 | -4.85 | 32.26 | 0.1571 | 989.0 | 803.1 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 9.61 | 249.45 | -5.73 | 35.82 | 0.1689 | 962.0 | 799.4 | |
| 0.00 | 2.66 | 0.00 | 1.33 | 8.68 | 249.31 | -5.86 | 40.01 | 0.1578 | 693.0 | 685.4 | |
| 0.00 | 4.80 | 0.00 | 2.41 | 9.78 | 249.18 | -6.00 | 36.47 | 0.1742 | 1067.0 | 894.3 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 10.02 | 248.93 | -6.25 | 36.75 | 0.1800 | 972.0 | 717.3 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 9.84 | 248.78 | -6.40 | 38.01 | 0.1791 | 1099.0 | 927.4 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 9.66 | 248.66 | -6.51 | 39.15 | 0.1780 | 978.0 | 809.2 | |
| 0.00 | 2.74 | 0.00 | 1.38 | 9.10 | 248.64 | -6.53 | 41.38 | 0.1708 | 623.0 | 647.5 | |
| 0.00 | 3.08 | 0.00 | 1.55 | 9.84 | 248.09 | -7.09 | 40.89 | 0.1867 | 1031.0 | 886.5 | |
| 0.00 | 2.40 | 0.00 | 1.21 | 9.54 | 247.91 | -7.27 | 42.68 | 0.1849 | 898.0 | 718.9 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 9.42 | 247.79 | -7.39 | 43.59 | 0.1848 | 881.0 | 724.2 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 10.40 | 246.74 | -8.44 | 43.85 | 0.2094 | 963.0 | 671.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
