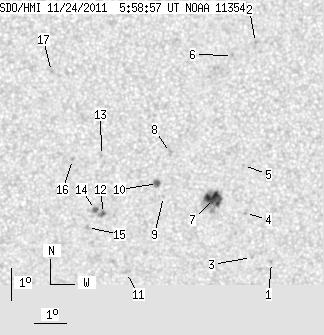

SDO HMI 2011-11-24 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.94 | 58.69 | 10.12 | 31.30 | -16.76 | 266.55 | 11.37 | 210.67 | 0.3717 | 247.1 | 208.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.47 | -18.94 | 269.58 | 14.40 | 213.70 | 0.4259 | 733.0 | 616.3 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -12.11 | 268.60 | 13.42 | 223.50 | 0.3312 | 924.0 | 778.4 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -18.77 | 268.92 | 13.74 | 212.71 | 0.4181 | 718.0 | 624.1 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -17.39 | 268.62 | 13.44 | 214.11 | 0.3973 | 797.0 | 553.3 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -15.89 | 268.45 | 13.27 | 216.11 | 0.3763 | 966.0 | 742.2 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -12.50 | 267.91 | 12.73 | 221.18 | 0.3281 | 846.0 | 717.2 | |
| 13.54 | 30.33 | 7.25 | 16.24 | -16.91 | 267.60 | 12.42 | 212.77 | 0.3819 | 1103.2 | 610.6 | |
| 0.00 | 2.74 | 0.00 | 1.45 | -15.47 | 266.13 | 10.95 | 211.74 | 0.3496 | 734.0 | 637.9 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -16.84 | 265.99 | 10.81 | 209.38 | 0.3674 | -749.0 | -550.8 | |
| 1.97 | 4.37 | 1.05 | 2.32 | -16.43 | 265.77 | 10.60 | 209.48 | 0.3600 | -1079.0 | -871.9 | |
| 0.00 | 2.74 | 0.00 | 1.48 | -19.22 | 264.96 | 9.78 | 204.13 | 0.3940 | 655.0 | 553.6 | |
| 0.60 | 6.68 | 0.32 | 3.55 | -17.36 | 264.13 | 8.95 | 204.39 | 0.3612 | -1060.3 | -839.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -15.55 | 263.98 | 8.80 | 206.36 | 0.3335 | -839.0 | -661.5 | |
| 2.83 | -12.00 | 1.50 | -12.00 | -17.23 | 263.87 | 8.69 | 203.92 | 0.3576 | -1045.2 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -17.80 | 263.65 | 8.47 | 202.73 | 0.3645 | -898.0 | -718.3 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -15.67 | 263.08 | 7.91 | 203.85 | 0.3290 | -935.0 | -732.5 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.96 | 262.35 | 7.17 | 205.57 | 0.2830 | -889.0 | -698.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
