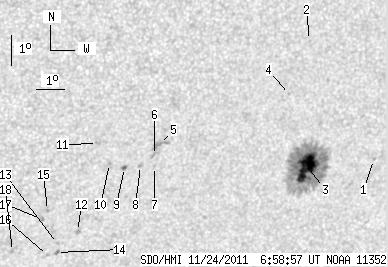

SDO HMI 2011-11-24 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.95 | 189.52 | 20.24 | 119.42 | -24.32 | 283.20 | 28.56 | 224.83 | 0.6195 | 366.7 | 176.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.45 | -24.07 | 286.65 | 32.02 | 228.28 | 0.6509 | 564.0 | 530.8 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -20.17 | 283.34 | 28.71 | 230.62 | 0.5856 | 337.0 | 476.5 | |
| 30.24 | 159.53 | 19.21 | 101.35 | -24.26 | 284.21 | 29.57 | 225.95 | 0.6283 | 1129.4 | 311.8 | |
| 0.00 | 0.34 | 0.00 | 0.21 | -21.90 | 282.98 | 28.35 | 227.91 | 0.5960 | 574.0 | 445.5 | |
| 0.00 | 7.54 | 0.00 | 4.53 | -23.46 | 278.65 | 24.02 | 221.38 | 0.5670 | -221.0 | -394.7 | |
| 0.00 | 2.91 | 0.00 | 1.75 | -23.82 | 278.54 | 23.91 | 220.80 | 0.5696 | -793.0 | -595.1 | |
| 0.00 | 0.43 | 0.00 | 0.26 | -24.18 | 278.61 | 23.98 | 220.43 | 0.5739 | -556.0 | -502.8 | |
| 0.00 | 1.88 | 0.00 | 1.13 | -24.14 | 278.11 | 23.48 | 219.91 | 0.5688 | -655.0 | -459.9 | |
| 1.71 | 1.88 | 1.03 | 1.13 | -24.20 | 277.55 | 22.92 | 219.20 | 0.5643 | -867.3 | -851.5 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -24.06 | 277.00 | 22.37 | 218.71 | 0.5578 | -851.0 | -617.0 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -23.40 | 276.46 | 21.83 | 218.88 | 0.5459 | -738.0 | -693.2 | |
| 0.00 | 2.31 | 0.00 | 1.40 | -26.31 | 276.30 | 21.67 | 215.23 | 0.5761 | -779.0 | -640.6 | |
| 0.00 | 1.46 | 0.00 | 0.88 | -26.70 | 275.67 | 21.03 | 214.02 | 0.5753 | -688.0 | -555.7 | |
| 0.00 | 2.06 | 0.00 | 1.25 | -27.01 | 275.69 | 21.06 | 213.72 | 0.5789 | -750.0 | -613.5 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -25.59 | 275.11 | 20.47 | 214.57 | 0.5582 | -905.0 | -816.4 | |
| 0.00 | 1.20 | 0.00 | 0.73 | -27.11 | 275.39 | 20.76 | 213.25 | 0.5776 | -674.0 | -518.6 | |
| 0.00 | 2.14 | 0.00 | 1.28 | -25.89 | 274.98 | 20.35 | 214.08 | 0.5606 | -749.0 | -660.8 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -26.96 | 274.12 | 19.49 | 211.83 | 0.5661 | -630.0 | -513.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
