SDO HMI 2011-11-24 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.89 | 348.71 | 28.83 | 177.15 | 14.18 | 251.99 | -2.10 | 8.60 | 0.2209 | -631.4 | -324.9 | |
|
previous
or next observation for the same group /

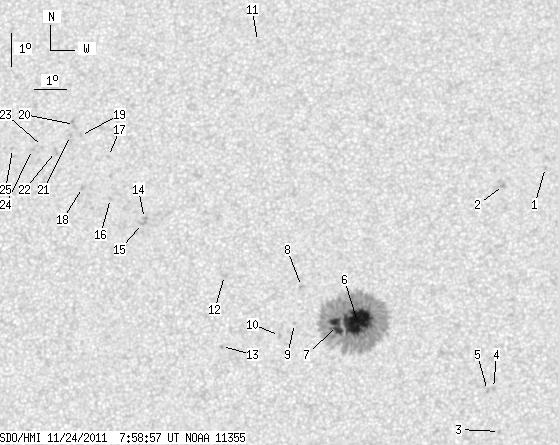

back to the solar disc SDO HMI 2011-11-24 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.62 | 18.57 | 258.44 | 4.36 | 346.02 | 0.2994 | -716.0 | -467.0 | |
| 0.00 | 2.57 | 0.00 | 1.33 | 18.02 | 257.12 | 3.03 | 349.81 | 0.2857 | -986.0 | -814.9 | |
| 0.00 | 1.29 | 0.00 | 0.64 | 10.55 | 256.90 | 2.81 | 342.48 | 0.1610 | -791.0 | -547.3 | |
| 0.00 | 1.88 | 0.00 | 0.95 | 11.84 | 256.73 | 2.64 | 345.54 | 0.1816 | -772.0 | -641.6 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 11.78 | 256.55 | 2.46 | 346.42 | 0.1798 | -871.0 | -786.0 | |
| 45.15 | 309.79 | 22.88 | 156.99 | 13.87 | 252.61 | -1.48 | 6.83 | 0.2121 | -1379.0 | -419.4 | |
| 11.74 | -6.00 | 5.95 | -6.00 | 13.74 | 252.00 | -2.09 | 9.68 | 0.2116 | -1169.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 14.93 | 250.88 | -3.20 | 13.34 | 0.2351 | -845.0 | -769.8 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 13.80 | 250.69 | -3.40 | 15.44 | 0.2174 | -800.0 | -600.4 | |
| 0.00 | 2.31 | 0.00 | 1.17 | 13.44 | 250.23 | -3.85 | 17.90 | 0.2137 | 937.0 | 715.3 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 22.51 | 249.32 | -4.77 | 12.22 | 0.3641 | -807.0 | -517.1 | |
| 0.00 | 1.97 | 0.00 | 1.01 | 15.25 | 248.51 | -5.58 | 21.89 | 0.2527 | 722.0 | 527.8 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 13.10 | 248.47 | -5.62 | 25.85 | 0.2196 | 907.0 | 757.6 | |
| 0.00 | 1.97 | 0.00 | 1.02 | 16.99 | 245.97 | -8.12 | 27.20 | 0.2969 | 922.0 | 771.0 | |
| 0.00 | 3.08 | 0.00 | 1.60 | 16.83 | 245.91 | -8.18 | 27.61 | 0.2951 | 838.0 | 744.5 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 17.60 | 244.87 | -9.22 | 29.20 | 0.3144 | 974.0 | 741.3 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 18.89 | 244.74 | -9.35 | 27.53 | 0.3340 | 880.0 | 630.9 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 17.93 | 243.97 | -10.12 | 30.93 | 0.3266 | 808.0 | 629.2 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 19.54 | 243.81 | -10.28 | 28.81 | 0.3505 | 876.0 | 713.0 | |
| 0.00 | 3.86 | 0.00 | 2.04 | 19.88 | 243.59 | -10.49 | 28.81 | 0.3570 | 701.0 | 658.6 | |
| 0.00 | 1.46 | 0.00 | 0.77 | 19.54 | 243.49 | -10.60 | 29.55 | 0.3530 | 898.0 | 731.4 | |
| 0.00 | 2.66 | 0.00 | 1.40 | 19.04 | 243.04 | -11.04 | 31.33 | 0.3498 | 846.0 | 743.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 19.19 | 242.62 | -11.47 | 32.04 | 0.3556 | 709.0 | 592.3 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 19.10 | 242.30 | -11.78 | 32.88 | 0.3570 | 721.0 | 609.4 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 19.12 | 241.66 | -12.43 | 34.21 | 0.3632 | 636.0 | 506.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
