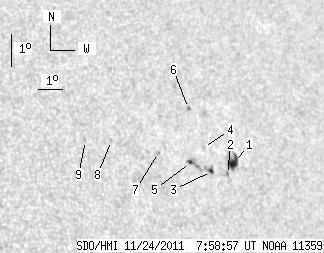

SDO HMI 2011-11-24 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.22 | 31.17 | 7.99 | 22.01 | 16.04 | 297.82 | 43.73 | 291.00 | 0.7138 | -514.6 | -355.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.48 | 12.85 | 6.08 | 9.21 | 15.96 | 298.86 | 44.77 | 290.55 | 0.7255 | -640.0 | -385.3 | |
| 0.00 | 1.71 | 0.00 | 1.22 | 15.60 | 298.50 | 44.41 | 290.18 | 0.7204 | -705.0 | -603.0 | |
| 1.20 | 4.80 | 0.84 | 3.38 | 15.71 | 297.84 | 43.75 | 290.52 | 0.7132 | -541.7 | -285.2 | |
| 0.00 | 1.20 | 0.00 | 0.85 | 16.45 | 297.70 | 43.61 | 291.58 | 0.7138 | 70.0 | 157.4 | |
| 1.54 | 6.85 | 1.07 | 4.78 | 16.00 | 297.03 | 42.94 | 291.19 | 0.7047 | -764.3 | -527.9 | |
| 0.00 | 1.11 | 0.00 | 0.79 | 17.66 | 297.41 | 43.32 | 293.32 | 0.7143 | 549.0 | 595.3 | |
| 0.00 | 0.94 | 0.00 | 0.64 | 16.33 | 295.77 | 41.69 | 292.09 | 0.6911 | -713.0 | -621.8 | |
| 0.00 | 0.94 | 0.00 | 0.63 | 16.74 | 293.96 | 39.87 | 293.36 | 0.6710 | -554.0 | -466.1 | |
| 0.00 | 0.77 | 0.00 | 0.51 | 16.76 | 292.92 | 38.83 | 293.83 | 0.6587 | -682.0 | -518.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
