SDO HMI 2011-11-24 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.08 | 79.06 | 7.73 | 40.13 | 8.99 | 259.25 | 5.71 | 202.06 | 0.2160 | -55.7 | -59.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

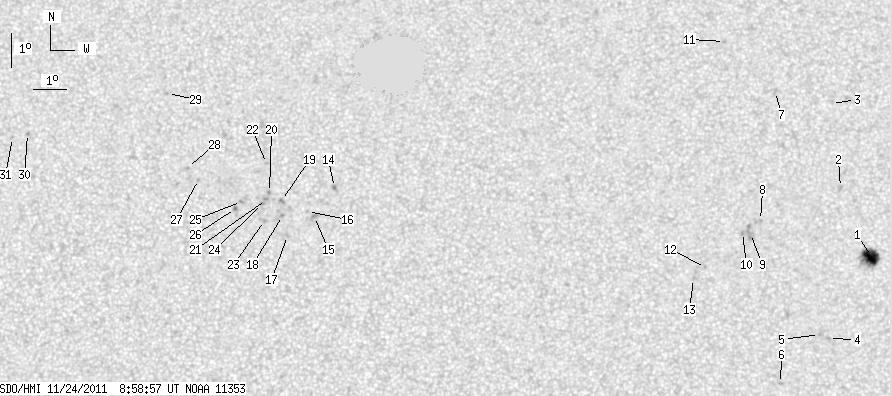

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.08 | 26.81 | 7.73 | 13.73 | 8.05 | 267.04 | 13.50 | 295.54 | 0.2573 | -1178.5 | -760.4 | |
| 0.00 | 2.14 | 0.00 | 1.10 | 10.12 | 266.16 | 12.62 | 304.18 | 0.2612 | -878.0 | -743.6 | |
| 0.00 | 0.43 | 0.00 | 0.22 | 12.64 | 266.00 | 12.45 | 311.99 | 0.2844 | -427.0 | -363.2 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 5.62 | 265.66 | 12.12 | 288.05 | 0.2207 | -901.0 | -681.4 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 5.74 | 265.39 | 11.84 | 288.95 | 0.2169 | -850.0 | -668.5 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 4.30 | 264.18 | 10.64 | 283.69 | 0.1903 | -946.0 | -711.2 | |
| 0.00 | 2.57 | 0.00 | 1.32 | 13.01 | 264.28 | 10.74 | 317.14 | 0.2681 | -765.0 | -579.2 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 9.14 | 263.68 | 10.14 | 306.59 | 0.2174 | -871.0 | -749.5 | |
| 0.00 | 7.20 | 0.00 | 3.64 | 8.76 | 263.36 | 9.82 | 305.96 | 0.2092 | -947.0 | -810.9 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 8.79 | 263.12 | 9.58 | 306.75 | 0.2062 | -950.0 | -729.9 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 14.53 | 262.77 | 9.22 | 324.98 | 0.2716 | -824.0 | -627.2 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 7.75 | 261.98 | 8.43 | 305.77 | 0.1800 | -866.0 | -683.5 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 7.43 | 261.61 | 8.07 | 305.44 | 0.1716 | -821.0 | -579.7 | |
| 0.00 | 2.31 | 0.00 | 1.16 | 10.15 | 250.85 | -2.69 | 17.57 | 0.1539 | 983.0 | 773.3 | |
| 0.00 | 3.77 | 0.00 | 1.89 | 9.29 | 250.26 | -3.29 | 23.34 | 0.1434 | 897.0 | 778.6 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 9.44 | 250.05 | -3.50 | 24.24 | 0.1472 | 802.0 | 617.4 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 8.72 | 249.45 | -4.09 | 30.18 | 0.1409 | 842.0 | 623.7 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 9.32 | 249.30 | -4.25 | 29.05 | 0.1512 | 1087.0 | 847.0 | |
| 0.00 | 2.40 | 0.00 | 1.20 | 9.76 | 249.26 | -4.28 | 27.85 | 0.1583 | 979.0 | 835.7 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 10.00 | 248.89 | -4.65 | 29.08 | 0.1649 | 967.0 | 805.6 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 9.79 | 248.81 | -4.73 | 30.19 | 0.1625 | 1159.0 | 901.6 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 10.87 | 248.79 | -4.75 | 27.18 | 0.1789 | 812.0 | 578.3 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 9.17 | 248.76 | -4.79 | 32.56 | 0.1538 | 1044.0 | 730.9 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 9.67 | 248.69 | -4.85 | 31.19 | 0.1618 | 1067.0 | 760.6 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 9.73 | 248.05 | -5.49 | 34.18 | 0.1686 | 1076.0 | 810.6 | |
| 0.00 | 1.97 | 0.00 | 0.99 | 9.52 | 247.88 | -5.66 | 35.76 | 0.1674 | 1084.0 | 909.0 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 10.38 | 246.74 | -6.80 | 37.79 | 0.1909 | 912.0 | 707.4 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 10.74 | 246.40 | -7.14 | 37.99 | 0.1993 | 810.0 | 656.6 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 12.96 | 245.73 | -7.81 | 34.25 | 0.2365 | 876.0 | 715.4 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 11.74 | 241.47 | -12.07 | 49.66 | 0.2699 | 911.0 | 769.8 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 11.61 | 241.01 | -12.53 | 51.04 | 0.2746 | 748.0 | 555.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
