SDO HMI 2011-11-24 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.31 | 170.56 | 30.98 | 176.35 | 19.19 | 193.37 | -60.17 | 69.02 | 0.8784 | -319.0 | -134.9 | |
|
previous
or next observation for the same group /

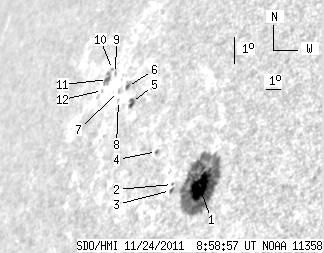

back to the solar disc SDO HMI 2011-11-24 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.96 | 148.46 | 22.87 | 148.11 | 18.78 | 194.51 | -59.03 | 69.30 | 0.8699 | -760.5 | -199.4 | |
| 0.00 | 1.03 | 0.00 | 1.08 | 18.80 | 192.80 | -60.74 | 69.55 | 0.8834 | -232.0 | -263.2 | |
| 0.34 | 1.37 | 0.36 | 1.43 | 18.61 | 192.79 | -60.76 | 69.77 | 0.8833 | -323.5 | -226.0 | |
| 0.00 | 1.20 | 0.00 | 1.33 | 19.79 | 191.09 | -62.45 | 68.72 | 0.8972 | 509.0 | 397.4 | |
| 3.26 | 4.37 | 4.04 | 5.42 | 21.26 | 188.14 | -65.40 | 67.53 | 0.9187 | 440.3 | 403.5 | |
| 0.69 | 2.91 | 0.88 | 3.73 | 21.74 | 187.39 | -66.15 | 67.11 | 0.9238 | 554.6 | 463.0 | |
| 0.00 | 1.37 | 0.00 | 1.79 | 21.57 | 186.83 | -66.71 | 67.37 | 0.9271 | 450.0 | 359.4 | |
| 0.00 | 1.03 | 0.00 | 1.33 | 21.29 | 187.08 | -66.46 | 67.63 | 0.9254 | 470.0 | 436.0 | |
| 0.00 | 0.94 | 0.00 | 1.27 | 22.12 | 186.05 | -67.49 | 66.87 | 0.9322 | 421.0 | 355.6 | |
| 0.00 | 0.94 | 0.00 | 1.29 | 22.24 | 185.68 | -67.87 | 66.79 | 0.9345 | 243.0 | 227.8 | |
| 2.06 | 6.17 | 2.83 | 8.51 | 21.92 | 185.57 | -67.97 | 67.15 | 0.9348 | 340.2 | 212.0 | |
| 0.00 | 0.77 | 0.00 | 1.06 | 21.57 | 185.49 | -68.05 | 67.53 | 0.9350 | 309.0 | 283.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
