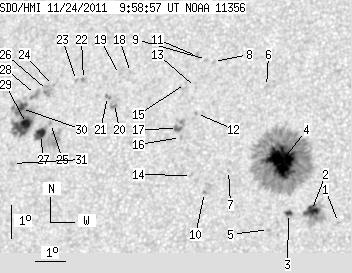

SDO HMI 2011-11-24 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.85 | 463.22 | 45.77 | 253.03 | 15.16 | 231.97 | -21.03 | 55.58 | 0.4195 | -544.8 | -197.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.50 | 13.03 | 236.25 | -16.75 | 54.98 | 0.3443 | 588.0 | 315.5 | |
| 10.45 | 32.81 | 5.54 | 17.38 | 13.38 | 235.36 | -17.63 | 55.45 | 0.3594 | -1069.4 | -487.8 | |
| 2.48 | 3.68 | 1.32 | 1.96 | 13.28 | 234.64 | -18.36 | 56.70 | 0.3684 | -959.9 | -755.3 | |
| 46.77 | 279.41 | 25.10 | 149.98 | 14.86 | 234.28 | -18.72 | 53.66 | 0.3868 | -1330.5 | -416.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 12.79 | 234.03 | -18.96 | 58.65 | 0.3727 | -798.0 | -633.3 | |
| 0.00 | 1.80 | 0.00 | 0.98 | 17.14 | 233.56 | -19.44 | 49.98 | 0.4170 | -787.0 | -577.0 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 14.57 | 232.58 | -20.41 | 56.48 | 0.4067 | -827.0 | -612.9 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 17.89 | 231.72 | -21.28 | 50.98 | 0.4464 | -621.0 | -481.7 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 17.95 | 231.48 | -21.52 | 51.16 | 0.4499 | -793.0 | -589.3 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 13.89 | 231.86 | -21.13 | 58.77 | 0.4111 | -779.0 | -629.9 | |
| 0.00 | 3.34 | 0.00 | 1.86 | 18.04 | 231.16 | -21.83 | 51.38 | 0.4545 | -563.0 | -458.8 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 16.29 | 231.35 | -21.65 | 54.45 | 0.4371 | -704.0 | -648.7 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 17.09 | 231.22 | -21.78 | 53.08 | 0.4455 | -700.0 | -519.2 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 14.40 | 231.39 | -21.61 | 58.22 | 0.4214 | -696.0 | -543.0 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 17.20 | 230.87 | -22.13 | 53.27 | 0.4509 | -469.0 | -385.8 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 15.55 | 230.90 | -22.10 | 56.42 | 0.4369 | -790.0 | -656.6 | |
| 2.91 | 8.31 | 1.61 | 4.58 | 15.82 | 230.77 | -22.23 | 56.02 | 0.4408 | -803.4 | -776.2 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 17.52 | 228.97 | -24.03 | 54.77 | 0.4773 | -708.0 | -493.3 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 17.46 | 228.60 | -24.39 | 55.26 | 0.4814 | -621.0 | -537.2 | |
| 0.00 | 5.40 | 0.00 | 3.03 | 16.56 | 228.56 | -24.44 | 56.93 | 0.4752 | -751.0 | -689.2 | |
| 0.00 | 2.57 | 0.00 | 1.45 | 16.78 | 228.29 | -24.70 | 56.80 | 0.4802 | -758.0 | -663.6 | |
| 0.00 | 1.88 | 0.00 | 1.07 | 17.29 | 227.40 | -25.60 | 56.74 | 0.4954 | -843.0 | -671.5 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 17.25 | 227.16 | -25.84 | 57.01 | 0.4982 | -456.0 | -391.3 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 17.09 | 226.39 | -26.61 | 57.99 | 0.5069 | 797.0 | 655.4 | |
| 0.00 | 1.46 | 0.00 | 0.83 | 15.93 | 226.46 | -26.54 | 60.01 | 0.4981 | 855.0 | 704.1 | |
| 0.00 | 8.39 | 0.00 | 4.82 | 16.93 | 226.21 | -26.79 | 58.43 | 0.5082 | 903.0 | 742.1 | |
| 8.31 | 32.72 | 4.75 | 18.63 | 15.59 | 226.16 | -26.83 | 60.88 | 0.4998 | 874.7 | 437.8 | |
| 0.00 | 5.82 | 0.00 | 3.35 | 16.81 | 225.81 | -27.19 | 58.99 | 0.5124 | 909.0 | 729.3 | |
| 6.42 | 56.45 | 3.69 | 32.51 | 15.91 | 225.63 | -27.36 | 60.71 | 0.5089 | 1175.8 | 639.2 | |
| 6.51 | -29.00 | 3.76 | -29.00 | 16.37 | 225.39 | -27.61 | 60.10 | 0.5150 | 877.0 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 14.69 | 225.32 | -27.67 | 63.17 | 0.5055 | 690.0 | 560.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
