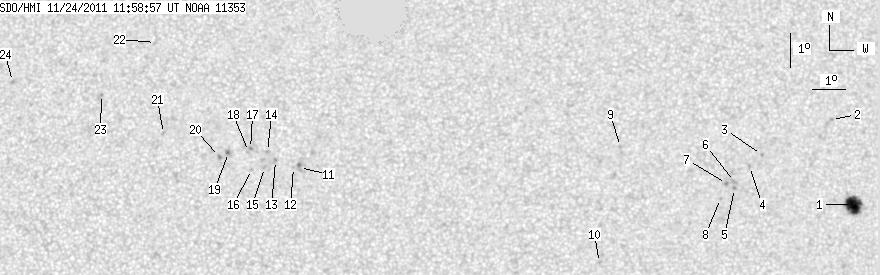

SDO HMI 2011-11-24 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.75 | 62.50 | 9.68 | 31.86 | 8.90 | 259.48 | 7.57 | 317.75 | 0.2282 | -213.7 | 58.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.75 | 27.06 | 9.68 | 13.97 | 8.06 | 267.00 | 15.10 | 293.27 | 0.2820 | -1174.5 | -494.5 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 10.60 | 266.43 | 14.53 | 302.13 | 0.2924 | -797.0 | -667.3 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 9.57 | 264.22 | 12.32 | 303.02 | 0.2521 | -975.0 | -774.2 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 9.21 | 263.84 | 11.94 | 302.59 | 0.2435 | -874.0 | -675.3 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 8.56 | 263.36 | 11.46 | 301.25 | 0.2308 | -1049.0 | -883.7 | |
| 0.00 | 2.48 | 0.00 | 1.26 | 8.77 | 263.37 | 11.46 | 302.01 | 0.2327 | -888.0 | -731.4 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 8.71 | 263.12 | 11.22 | 302.34 | 0.2287 | -1052.0 | -871.6 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 8.26 | 262.93 | 11.02 | 301.07 | 0.2219 | -841.0 | -646.7 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 9.83 | 259.93 | 8.03 | 315.68 | 0.1978 | -797.0 | -630.5 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 6.38 | 259.23 | 7.33 | 302.58 | 0.1511 | -929.0 | -726.2 | |
| 0.00 | 3.34 | 0.00 | 1.67 | 9.22 | 250.27 | -1.63 | 12.22 | 0.1336 | 955.0 | 829.3 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 9.22 | 250.09 | -1.81 | 13.52 | 0.1343 | 952.0 | 719.7 | |
| 0.00 | 2.06 | 0.00 | 1.03 | 9.43 | 249.55 | -2.36 | 16.88 | 0.1403 | 848.0 | 760.2 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 9.69 | 249.31 | -2.60 | 17.91 | 0.1460 | 1014.0 | 771.5 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 9.22 | 249.22 | -2.68 | 19.57 | 0.1386 | 866.0 | 682.3 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 9.16 | 248.83 | -3.07 | 22.32 | 0.1401 | 975.0 | 688.3 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 9.78 | 248.79 | -3.11 | 20.92 | 0.1504 | 1093.0 | 956.8 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 9.69 | 248.73 | -3.17 | 21.51 | 0.1493 | 764.0 | 670.1 | |
| 0.00 | 2.23 | 0.00 | 1.12 | 9.66 | 248.13 | -3.77 | 25.20 | 0.1530 | 1124.0 | 830.8 | |
| 0.00 | 1.80 | 0.00 | 0.90 | 9.54 | 247.86 | -4.04 | 27.11 | 0.1531 | 956.0 | 846.3 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 10.23 | 246.17 | -5.74 | 33.69 | 0.1782 | 783.0 | 699.6 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 12.96 | 245.87 | -6.04 | 27.78 | 0.2209 | 580.0 | 458.4 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 11.39 | 244.26 | -7.64 | 37.86 | 0.2134 | 778.0 | 582.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 11.76 | 241.53 | -10.38 | 45.31 | 0.2492 | 900.0 | 688.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
