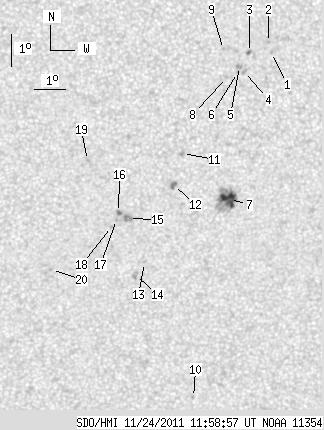

SDO HMI 2011-11-24 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.33 | 71.43 | 8.30 | 38.56 | -16.49 | 266.70 | 14.80 | 218.26 | 0.3996 | 428.2 | 235.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.41 | -12.38 | 268.63 | 16.73 | 229.19 | 0.3731 | 842.0 | 642.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -12.07 | 268.52 | 16.61 | 229.64 | 0.3686 | 829.0 | 677.4 | |
| 0.69 | 1.71 | 0.36 | 0.91 | -12.37 | 267.94 | 16.03 | 228.02 | 0.3646 | 884.0 | 868.1 | |
| 0.00 | 2.06 | 0.00 | 1.09 | -12.95 | 267.82 | 15.91 | 226.61 | 0.3693 | 690.0 | 580.3 | |
| 0.00 | 2.40 | 0.00 | 1.28 | -12.80 | 267.65 | 15.75 | 226.63 | 0.3657 | 905.0 | 847.0 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -12.98 | 267.60 | 15.70 | 226.16 | 0.3671 | 781.0 | 583.4 | |
| 12.93 | 35.71 | 7.02 | 19.40 | -16.91 | 267.64 | 15.74 | 219.15 | 0.4128 | 1071.9 | 529.3 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -13.13 | 267.26 | 15.36 | 225.25 | 0.3648 | 835.0 | 598.1 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -12.27 | 267.11 | 15.21 | 226.74 | 0.3536 | 796.0 | 624.6 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -23.22 | 267.10 | 15.20 | 209.78 | 0.4871 | 734.0 | 663.2 | |
| 0.00 | 2.40 | 0.00 | 1.28 | -15.46 | 266.03 | 14.13 | 218.57 | 0.3789 | 963.0 | 723.8 | |
| 0.00 | 3.94 | 0.00 | 2.12 | -16.45 | 265.81 | 13.91 | 216.51 | 0.3892 | -1148.0 | -907.5 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -18.86 | 265.07 | 13.17 | 211.54 | 0.4139 | 638.0 | 545.8 | |
| 0.00 | 3.85 | 0.00 | 2.10 | -19.27 | 264.82 | 12.91 | 210.51 | 0.4173 | 579.0 | 545.3 | |
| 0.00 | 5.14 | 0.00 | 2.76 | -17.47 | 264.46 | 12.55 | 212.25 | 0.3902 | -762.0 | -844.8 | |
| 1.71 | 2.14 | 0.92 | 1.15 | -17.28 | 264.13 | 12.22 | 211.85 | 0.3848 | -1000.5 | -991.2 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -17.50 | 264.08 | 12.17 | 211.43 | 0.3873 | -820.0 | -751.5 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -17.72 | 263.93 | 12.03 | 210.83 | 0.3891 | -774.0 | -698.5 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -15.66 | 263.05 | 11.15 | 211.94 | 0.3534 | -934.0 | -791.2 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -19.07 | 262.11 | 10.21 | 205.27 | 0.3942 | -699.0 | -607.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
