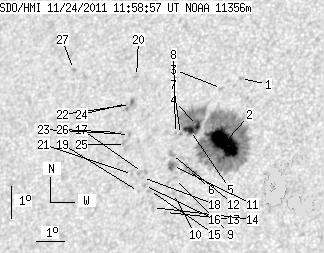

SDO HMI 2011-11-24 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.61 | 332.46 | 29.64 | 195.41 | 17.42 | 222.91 | -28.99 | 59.36 | 0.5396 | -421.2 | -213.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.86 | 19.38 | 223.68 | -28.22 | 55.53 | 0.5433 | 628.0 | 496.7 | |
| 41.28 | 228.91 | 24.11 | 133.75 | 17.39 | 223.47 | -28.43 | 58.98 | 0.5323 | -1157.0 | -381.0 | |
| 0.00 | 1.71 | 0.00 | 1.01 | 19.06 | 223.06 | -28.84 | 56.56 | 0.5486 | -793.0 | -601.8 | |
| 3.85 | 50.18 | 2.28 | 29.78 | 17.90 | 222.42 | -29.48 | 58.95 | 0.5489 | -780.3 | -164.0 | |
| 5.48 | -4.00 | 3.25 | -4.00 | 17.75 | 222.20 | -29.71 | 59.37 | 0.5507 | -845.0 | 999999 | |
| 0.00 | 8.99 | 0.00 | 5.29 | 16.55 | 222.30 | -29.60 | 61.30 | 0.5420 | -463.0 | -285.7 | |
| 0.00 | 1.20 | 0.00 | 0.71 | 17.62 | 221.86 | -30.04 | 59.83 | 0.5541 | -380.0 | -343.6 | |
| 0.00 | 1.37 | 0.00 | 0.82 | 17.65 | 221.68 | -30.23 | 59.92 | 0.5566 | -461.0 | -330.8 | |
| 0.00 | 1.37 | 0.00 | 0.81 | 16.27 | 221.89 | -30.02 | 62.07 | 0.5457 | 189.0 | 182.4 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 15.81 | 221.93 | -29.98 | 62.82 | 0.5426 | 720.0 | 507.2 | |
| 0.00 | 5.91 | 0.00 | 3.50 | 16.66 | 221.75 | -30.16 | 61.50 | 0.5498 | 423.0 | 502.8 | |
| 0.00 | 3.60 | 0.00 | 2.13 | 17.00 | 221.65 | -30.25 | 61.00 | 0.5530 | 304.0 | 167.3 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 15.23 | 221.74 | -30.17 | 63.95 | 0.5419 | 708.0 | 617.0 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 15.37 | 221.25 | -30.65 | 64.01 | 0.5491 | 733.0 | 629.2 | |
| 0.00 | 1.46 | 0.00 | 0.86 | 15.89 | 221.06 | -30.85 | 63.26 | 0.5544 | 839.0 | 664.8 | |
| 0.00 | 1.28 | 0.00 | 0.77 | 16.04 | 220.85 | -31.05 | 63.15 | 0.5579 | 908.0 | 693.9 | |
| 0.00 | 4.02 | 0.00 | 2.41 | 16.43 | 220.71 | -31.19 | 62.58 | 0.5619 | 327.0 | 652.7 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 16.28 | 220.74 | -31.17 | 62.82 | 0.5607 | 802.0 | 605.0 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 15.85 | 220.67 | -31.24 | 63.57 | 0.5592 | 525.0 | 392.2 | |
| 0.00 | 1.63 | 0.00 | 1.00 | 19.38 | 219.90 | -32.00 | 58.42 | 0.5891 | 341.0 | 403.8 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 16.37 | 220.36 | -31.54 | 62.92 | 0.5660 | 467.0 | 424.2 | |
| 0.00 | 4.80 | 0.00 | 2.92 | 18.51 | 219.86 | -32.04 | 59.79 | 0.5843 | 801.0 | 676.6 | |
| 0.00 | 1.63 | 0.00 | 0.99 | 17.59 | 220.02 | -31.89 | 61.15 | 0.5771 | 793.0 | 663.8 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 18.54 | 219.71 | -32.19 | 59.85 | 0.5864 | 635.0 | 534.2 | |
| 0.00 | 3.94 | 0.00 | 2.38 | 17.28 | 219.93 | -31.97 | 61.70 | 0.5764 | 460.0 | 656.6 | |
| 0.00 | 0.69 | 0.00 | 0.42 | 17.65 | 219.64 | -32.26 | 61.31 | 0.5821 | 526.0 | 524.2 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 19.56 | 217.49 | -34.41 | 59.72 | 0.6190 | 797.0 | 641.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
