SDO HMI 2011-11-24 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.99 | 12.75 | 1.94 | 8.27 | 18.63 | 214.76 | -37.15 | 62.64 | 0.6474 | 303.9 | 339.0 | |
|
previous
or next observation for the same group /

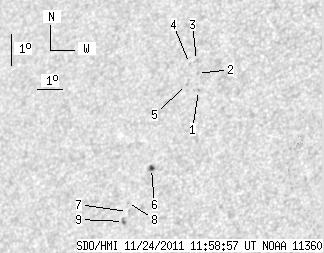

back to the solar disc SDO HMI 2011-11-24 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.83 | 20.07 | 215.74 | -36.17 | 60.02 | 0.6423 | 732.0 | 609.5 | |
| 0.00 | 1.11 | 0.00 | 0.72 | 20.60 | 215.55 | -36.35 | 59.36 | 0.6472 | 687.0 | 530.0 | |
| 0.00 | 1.88 | 0.00 | 1.23 | 21.00 | 215.40 | -36.50 | 58.88 | 0.6511 | 637.0 | 549.2 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 20.90 | 215.15 | -36.75 | 59.16 | 0.6534 | 560.0 | 459.4 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 20.25 | 215.22 | -36.69 | 60.05 | 0.6492 | 523.0 | 413.3 | |
| 1.88 | 2.83 | 1.22 | 1.83 | 17.62 | 214.52 | -37.38 | 64.22 | 0.6449 | -603.5 | -596.5 | |
| 0.00 | 0.43 | 0.00 | 0.28 | 16.29 | 213.90 | -38.00 | 66.47 | 0.6469 | 350.0 | 437.4 | |
| 0.00 | 0.77 | 0.00 | 0.50 | 16.56 | 213.83 | -38.07 | 66.10 | 0.6488 | -443.0 | -268.6 | |
| 1.11 | 2.57 | 0.72 | 1.66 | 15.98 | 213.81 | -38.09 | 66.97 | 0.6468 | 565.7 | 453.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
