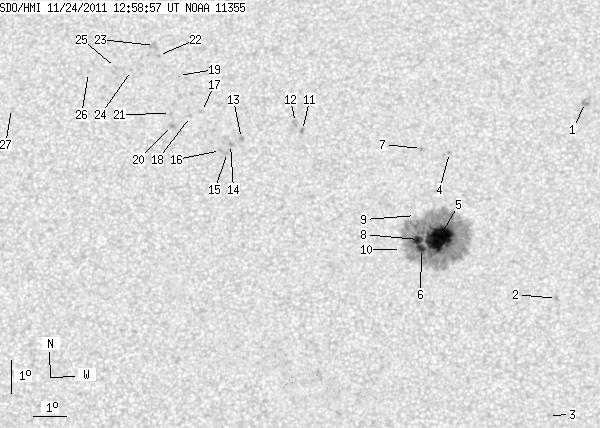

SDO HMI 2011-11-24 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.29 | 331.09 | 25.99 | 168.25 | 14.27 | 251.83 | 0.47 | 357.07 | 0.2208 | -512.2 | -340.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.68 | 0.00 | 1.91 | 18.05 | 257.14 | 5.78 | 341.17 | 0.2981 | -905.0 | -855.0 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 12.09 | 256.10 | 4.74 | 335.78 | 0.1979 | -949.0 | -765.6 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 8.59 | 255.80 | 4.45 | 327.25 | 0.1424 | -798.0 | -567.1 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 16.52 | 252.88 | 1.53 | 354.28 | 0.2575 | -758.0 | -634.5 | |
| 40.84 | 291.21 | 20.70 | 147.58 | 13.90 | 252.53 | 1.17 | 354.61 | 0.2125 | -1374.1 | -451.4 | |
| 5.14 | -5.00 | 2.60 | -5.00 | 13.60 | 252.01 | 0.65 | 356.91 | 0.2067 | -1244.2 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 16.64 | 252.02 | 0.66 | 357.53 | 0.2585 | -756.0 | -647.7 | |
| 5.31 | -5.00 | 2.69 | -5.00 | 13.87 | 251.92 | 0.56 | 357.40 | 0.2113 | -1116.5 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 14.60 | 251.83 | 0.47 | 357.94 | 0.2236 | -163.0 | -219.3 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 13.57 | 251.40 | 0.05 | 359.78 | 0.2059 | -183.0 | -158.2 | |
| 0.00 | 2.31 | 0.00 | 1.19 | 17.19 | 248.33 | -3.02 | 10.70 | 0.2723 | 939.0 | 746.9 | |
| 0.00 | 3.08 | 0.00 | 1.59 | 17.44 | 248.11 | -3.24 | 11.28 | 0.2771 | 658.0 | 648.1 | |
| 0.00 | 2.06 | 0.00 | 1.06 | 16.94 | 246.45 | -4.91 | 17.33 | 0.2760 | 914.0 | 758.3 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 16.76 | 246.11 | -5.24 | 18.66 | 0.2748 | 1131.0 | 938.8 | |
| 0.00 | 2.23 | 0.00 | 1.15 | 16.51 | 246.03 | -5.33 | 19.25 | 0.2713 | 942.0 | 712.3 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 16.57 | 245.81 | -5.55 | 19.90 | 0.2735 | 910.0 | 671.5 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 17.77 | 245.18 | -6.18 | 20.36 | 0.2959 | 813.0 | 616.8 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 17.61 | 244.84 | -6.52 | 21.57 | 0.2955 | 889.0 | 652.9 | |
| 0.00 | 0.34 | 0.00 | 0.18 | 18.88 | 244.41 | -6.94 | 21.20 | 0.3176 | 658.0 | 636.8 | |
| 0.00 | 2.65 | 0.00 | 1.38 | 17.33 | 244.29 | -7.07 | 23.59 | 0.2948 | 931.0 | 735.7 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 17.70 | 244.21 | -7.14 | 23.30 | 0.3009 | 898.0 | 729.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 19.50 | 243.75 | -7.60 | 22.23 | 0.3311 | 827.0 | 681.4 | |
| 0.00 | 4.02 | 0.00 | 2.12 | 19.81 | 243.61 | -7.74 | 22.22 | 0.3367 | 716.0 | 629.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 19.03 | 242.92 | -8.43 | 24.99 | 0.3296 | 770.0 | 620.4 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 19.12 | 242.41 | -8.94 | 26.17 | 0.3345 | 732.0 | 596.3 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 18.96 | 241.56 | -9.79 | 28.49 | 0.3387 | 103.0 | 147.2 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 17.83 | 239.19 | -12.16 | 35.84 | 0.3441 | 759.0 | 538.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
