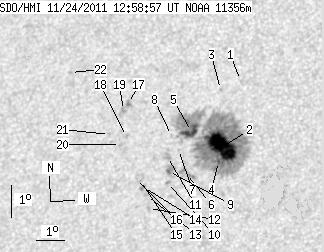

SDO HMI 2011-11-24 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.34 | 348.86 | 31.08 | 203.86 | 17.40 | 222.99 | -28.36 | 58.91 | 0.5315 | -495.3 | -233.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.50 | 19.42 | 223.77 | -27.59 | 54.91 | 0.5359 | 598.0 | 535.0 | |
| 40.33 | 303.37 | 23.44 | 176.91 | 17.37 | 223.49 | -27.86 | 58.56 | 0.5249 | -1192.8 | -331.0 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 19.13 | 223.11 | -28.24 | 55.95 | 0.5418 | -747.0 | -552.1 | |
| 1.80 | -2.00 | 1.04 | -2.00 | 16.91 | 223.43 | -27.93 | 59.41 | 0.5227 | -679.0 | 999999 | |
| 10.70 | -2.00 | 6.30 | -2.00 | 17.82 | 222.32 | -29.04 | 58.74 | 0.5427 | -832.3 | 999999 | |
| 0.00 | 8.39 | 0.00 | 4.91 | 16.53 | 222.36 | -28.99 | 60.89 | 0.5340 | -510.0 | -342.5 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 17.26 | 221.95 | -29.40 | 59.95 | 0.5437 | -350.0 | -215.3 | |
| 0.00 | 1.63 | 0.00 | 0.96 | 17.68 | 221.63 | -29.73 | 59.49 | 0.5505 | -351.0 | -190.6 | |
| 0.51 | 8.39 | 0.30 | 4.94 | 16.58 | 221.72 | -29.64 | 61.27 | 0.5427 | 849.0 | 403.9 | |
| 0.00 | 1.88 | 0.00 | 1.11 | 16.24 | 221.74 | -29.62 | 61.83 | 0.5404 | 761.0 | 588.0 | |
| 0.00 | 4.80 | 0.00 | 2.83 | 17.04 | 221.60 | -29.75 | 60.58 | 0.5469 | 314.0 | 225.2 | |
| 0.00 | 1.46 | 0.00 | 0.86 | 15.44 | 221.19 | -30.16 | 63.57 | 0.5430 | 767.0 | 656.9 | |
| 0.00 | 1.80 | 0.00 | 1.06 | 15.83 | 221.06 | -30.30 | 62.99 | 0.5469 | 689.0 | 645.5 | |
| 0.00 | 2.48 | 0.00 | 1.47 | 16.08 | 220.91 | -30.45 | 62.68 | 0.5502 | 765.0 | 659.6 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 16.29 | 220.77 | -30.59 | 62.42 | 0.5533 | 827.0 | 678.5 | |
| 0.00 | 0.69 | 0.00 | 0.41 | 16.35 | 220.58 | -30.78 | 62.45 | 0.5560 | 736.0 | 601.9 | |
| 0.00 | 3.17 | 0.00 | 1.92 | 18.65 | 219.88 | -31.47 | 59.19 | 0.5782 | 828.0 | 729.5 | |
| 0.00 | 1.46 | 0.00 | 0.88 | 17.63 | 220.01 | -31.34 | 60.72 | 0.5705 | 812.0 | 670.4 | |
| 0.00 | 2.14 | 0.00 | 1.30 | 18.43 | 219.74 | -31.61 | 59.63 | 0.5786 | 878.0 | 707.0 | |
| 0.00 | 1.46 | 0.00 | 0.88 | 17.38 | 219.84 | -31.51 | 61.24 | 0.5712 | 722.0 | 655.6 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 17.68 | 219.38 | -31.97 | 61.06 | 0.5787 | 469.0 | 477.2 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 19.57 | 217.51 | -33.84 | 59.34 | 0.6123 | 791.0 | 645.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
