SDO HMI 2011-11-24 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.26 | 59.42 | 9.99 | 30.38 | 8.89 | 259.53 | 8.72 | 307.67 | 0.2406 | -305.5 | -4.8 | |
|
previous
or next observation for the same group /

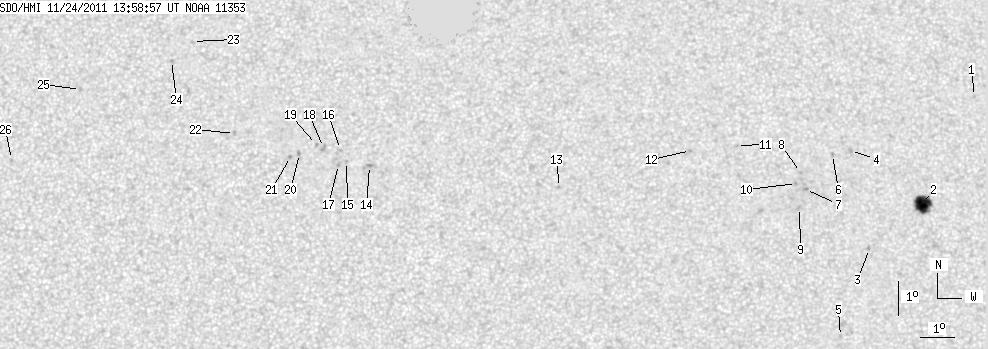

back to the solar disc SDO HMI 2011-11-24 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.50 | 11.26 | 268.79 | 17.98 | 298.83 | 0.3472 | -840.0 | -652.9 | |
| 19.26 | 22.60 | 9.99 | 11.73 | 8.07 | 266.99 | 16.18 | 291.99 | 0.2990 | -1172.0 | -761.2 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 6.75 | 265.30 | 14.50 | 289.54 | 0.2650 | -886.0 | -718.4 | |
| 0.00 | 1.88 | 0.00 | 0.97 | 9.67 | 264.82 | 14.02 | 300.17 | 0.2774 | -842.0 | -644.9 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 4.15 | 264.35 | 13.55 | 280.38 | 0.2386 | -815.0 | -650.7 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 9.56 | 264.26 | 13.46 | 300.79 | 0.2684 | -899.0 | -702.7 | |
| 0.00 | 1.88 | 0.00 | 0.96 | 8.52 | 263.39 | 12.59 | 298.84 | 0.2472 | -990.0 | -815.7 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 9.02 | 263.26 | 12.45 | 300.90 | 0.2493 | -838.0 | -652.2 | |
| 0.00 | 1.88 | 0.00 | 0.96 | 7.98 | 263.19 | 12.39 | 297.24 | 0.2400 | -858.0 | -684.9 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 8.70 | 263.12 | 12.32 | 300.00 | 0.2446 | -919.0 | -722.4 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 9.84 | 261.33 | 10.52 | 308.16 | 0.2299 | -847.0 | -688.5 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 9.70 | 259.92 | 9.12 | 311.63 | 0.2099 | -955.0 | -784.5 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 8.61 | 255.94 | 5.14 | 323.51 | 0.1496 | -830.0 | -629.5 | |
| 0.00 | 2.40 | 0.00 | 1.20 | 9.27 | 250.25 | -0.55 | 4.17 | 0.1320 | 1141.0 | 835.5 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 9.39 | 249.56 | -1.24 | 9.14 | 0.1355 | 847.0 | 685.8 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 9.75 | 249.38 | -1.43 | 9.98 | 0.1421 | 868.0 | 784.3 | |
| 0.00 | 1.80 | 0.00 | 0.90 | 9.30 | 249.32 | -1.48 | 10.99 | 0.1346 | 959.0 | 833.9 | |
| 0.00 | 2.74 | 0.00 | 1.37 | 9.81 | 248.87 | -1.94 | 13.35 | 0.1449 | 821.0 | 854.9 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 9.90 | 248.66 | -2.15 | 14.58 | 0.1473 | 856.0 | 708.3 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 9.63 | 248.15 | -2.66 | 18.41 | 0.1453 | 1113.0 | 912.6 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 9.54 | 247.88 | -2.93 | 20.35 | 0.1454 | 1038.0 | 918.9 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 10.22 | 246.19 | -4.62 | 28.23 | 0.1683 | 887.0 | 733.9 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 12.98 | 244.86 | -5.94 | 27.36 | 0.2206 | 755.0 | 585.5 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 12.41 | 244.23 | -6.57 | 31.10 | 0.2174 | 751.0 | 636.6 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 11.53 | 241.48 | -9.32 | 42.99 | 0.2339 | 809.0 | 605.8 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 9.42 | 239.44 | -11.36 | 55.39 | 0.2373 | 692.0 | 529.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
