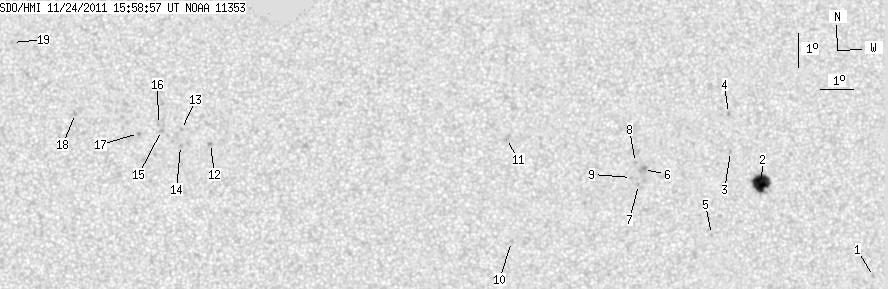

SDO HMI 2011-11-24 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.29 | 49.90 | 10.59 | 25.73 | 8.46 | 262.46 | 12.75 | 253.09 | 0.2686 | -486.3 | -262.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.59 | 5.26 | 270.43 | 20.72 | 280.20 | 0.3596 | -815.0 | -590.2 | |
| 20.29 | 24.40 | 10.59 | 12.73 | 8.06 | 267.01 | 17.30 | 290.73 | 0.3163 | -1183.1 | -666.5 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 9.02 | 266.08 | 16.38 | 294.68 | 0.3078 | -885.0 | -615.6 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 10.16 | 266.08 | 16.37 | 298.01 | 0.3156 | -885.0 | -739.8 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 6.56 | 265.39 | 15.69 | 287.58 | 0.2831 | -751.0 | -547.2 | |
| 0.00 | 4.19 | 0.00 | 2.15 | 8.50 | 263.36 | 13.66 | 296.93 | 0.2631 | -1038.0 | -805.3 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 8.06 | 263.19 | 13.49 | 295.65 | 0.2574 | -867.0 | -687.8 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 8.72 | 263.12 | 13.42 | 298.05 | 0.2611 | -988.0 | -781.6 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 8.27 | 262.99 | 13.28 | 296.73 | 0.2557 | -959.0 | -730.2 | |
| 0.00 | 1.46 | 0.00 | 0.73 | 6.39 | 259.28 | 9.58 | 296.23 | 0.1852 | -887.0 | -693.9 | |
| 0.00 | 3.08 | 0.00 | 1.56 | 9.45 | 259.20 | 9.50 | 309.59 | 0.2122 | -930.0 | -777.5 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 9.33 | 250.29 | 0.58 | 355.67 | 0.1330 | 950.0 | 786.9 | |
| 0.00 | 0.51 | 0.00 | 0.26 | 9.75 | 249.42 | -0.29 | 2.04 | 0.1400 | 877.0 | 783.2 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 9.27 | 249.39 | -0.32 | 2.39 | 0.1317 | 942.0 | 818.1 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 9.72 | 248.82 | -0.89 | 6.29 | 0.1403 | 1133.0 | 895.2 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 9.90 | 248.73 | -0.98 | 6.77 | 0.1435 | 933.0 | 746.9 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 9.63 | 248.13 | -1.58 | 11.20 | 0.1405 | 1103.0 | 1019.7 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 10.22 | 246.23 | -3.48 | 22.02 | 0.1599 | 932.0 | 684.2 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 12.35 | 244.29 | -5.42 | 26.59 | 0.2069 | 760.0 | 640.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
