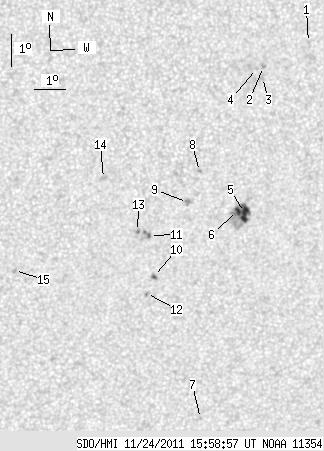

SDO HMI 2011-11-24 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.84 | 61.62 | 8.69 | 33.68 | -16.59 | 266.70 | 16.99 | 221.83 | 0.4234 | 477.8 | 184.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.74 | -11.62 | 269.31 | 19.60 | 235.09 | 0.4024 | 807.0 | 627.8 | |
| 0.00 | 2.23 | 0.00 | 1.20 | -12.34 | 267.92 | 18.21 | 231.63 | 0.3911 | 999.0 | 763.8 | |
| 0.00 | 2.82 | 0.00 | 1.52 | -12.67 | 267.91 | 18.21 | 230.94 | 0.3943 | 795.0 | 526.9 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -12.40 | 267.70 | 17.99 | 231.18 | 0.3890 | 711.0 | 603.0 | |
| 10.53 | 34.84 | 5.79 | 19.15 | -16.84 | 267.69 | 17.99 | 222.98 | 0.4354 | 1022.6 | 438.9 | |
| 2.57 | -5.00 | 1.41 | -5.00 | -16.77 | 267.46 | 17.75 | 222.72 | 0.4321 | 1186.8 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -23.40 | 267.00 | 17.30 | 212.79 | 0.5059 | 692.0 | 531.2 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -15.55 | 266.12 | 16.42 | 222.62 | 0.4039 | 935.0 | 803.6 | |
| 0.00 | 3.42 | 0.00 | 1.86 | -16.51 | 265.82 | 16.11 | 220.47 | 0.4118 | -1033.0 | -836.7 | |
| 1.37 | 2.14 | 0.75 | 1.17 | -18.82 | 264.93 | 15.23 | 215.37 | 0.4313 | 711.6 | 704.1 | |
| 1.37 | 3.42 | 0.74 | 1.86 | -17.53 | 264.69 | 14.98 | 216.84 | 0.4129 | -800.0 | -842.7 | |
| 0.00 | 1.97 | 0.00 | 1.08 | -19.36 | 264.75 | 15.05 | 214.31 | 0.4364 | 715.0 | 569.1 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -17.40 | 264.29 | 14.59 | 216.32 | 0.4075 | -1083.0 | -1008.7 | |
| 0.00 | 2.91 | 0.00 | 1.55 | -15.74 | 263.08 | 13.38 | 216.63 | 0.3749 | -841.0 | -682.4 | |
| 0.00 | 1.97 | 0.00 | 1.06 | -18.60 | 260.46 | 10.75 | 206.99 | 0.3912 | -825.0 | -634.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
