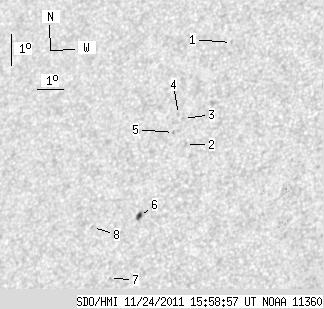

SDO HMI 2011-11-24 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.91 | 10.96 | 1.83 | 6.91 | 19.18 | 214.98 | -34.72 | 60.46 | 0.6214 | 360.7 | 405.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.49 | 23.17 | 216.72 | -32.98 | 53.53 | 0.6246 | 596.0 | 504.6 | |
| 0.00 | 1.71 | 0.00 | 1.07 | 19.94 | 215.81 | -33.89 | 58.83 | 0.6150 | 763.0 | 494.8 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 20.75 | 215.53 | -34.17 | 57.81 | 0.6229 | 592.0 | 494.9 | |
| 0.00 | 1.20 | 0.00 | 0.76 | 20.87 | 215.31 | -34.39 | 57.78 | 0.6262 | 482.0 | 470.1 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 20.30 | 215.26 | -34.44 | 58.63 | 0.6235 | 526.0 | 455.6 | |
| 2.91 | 3.77 | 1.83 | 2.37 | 17.68 | 214.60 | -35.11 | 62.94 | 0.6176 | -570.4 | -425.4 | |
| 0.00 | 0.51 | 0.00 | 0.32 | 15.77 | 213.87 | -35.84 | 66.25 | 0.6179 | 707.0 | 566.0 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 17.31 | 212.87 | -36.83 | 64.39 | 0.6369 | 563.0 | 587.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
