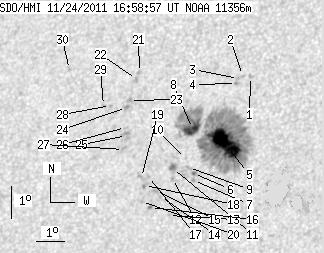

SDO HMI 2011-11-24 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.02 | 348.89 | 30.88 | 200.18 | 17.46 | 222.85 | -26.30 | 57.04 | 0.5058 | -387.9 | -204.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 1.08 | 19.44 | 224.02 | -25.14 | 52.56 | 0.5065 | 587.0 | 456.5 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 19.46 | 223.74 | -25.42 | 52.80 | 0.5102 | 436.0 | 242.5 | |
| 0.00 | 0.68 | 0.00 | 0.39 | 19.37 | 223.61 | -25.54 | 53.08 | 0.5109 | -252.0 | -266.0 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 19.21 | 223.57 | -25.58 | 53.38 | 0.5102 | -780.0 | -611.2 | |
| 41.69 | 237.27 | 23.77 | 135.34 | 17.39 | 223.45 | -25.71 | 56.63 | 0.4977 | -1231.8 | -407.2 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 16.42 | 222.52 | -26.63 | 59.17 | 0.5028 | -817.0 | -635.2 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 16.21 | 222.55 | -26.60 | 59.53 | 0.5009 | -714.0 | -509.6 | |
| 12.33 | 56.24 | 7.11 | 32.54 | 17.80 | 222.27 | -26.88 | 56.97 | 0.5156 | -888.0 | -142.7 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 16.61 | 222.32 | -26.83 | 59.02 | 0.5066 | -224.0 | -240.8 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 16.88 | 222.17 | -26.98 | 58.66 | 0.5103 | -193.0 | -163.3 | |
| 0.00 | 6.42 | 0.00 | 3.70 | 16.57 | 221.77 | -27.38 | 59.55 | 0.5135 | 619.0 | 404.6 | |
| 0.00 | 1.37 | 0.00 | 0.79 | 16.26 | 221.82 | -27.34 | 60.05 | 0.5109 | 780.0 | 498.0 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 15.13 | 221.84 | -27.31 | 62.06 | 0.5034 | 722.0 | 550.2 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 15.71 | 221.48 | -27.67 | 61.30 | 0.5117 | 756.0 | 644.8 | |
| 0.00 | 2.23 | 0.00 | 1.28 | 15.89 | 221.28 | -27.87 | 61.14 | 0.5155 | 853.0 | 706.4 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 15.37 | 221.19 | -27.97 | 62.14 | 0.5136 | 842.0 | 761.5 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 16.31 | 220.97 | -28.18 | 60.63 | 0.5222 | 845.0 | 607.3 | |
| 0.00 | 2.05 | 0.00 | 1.19 | 16.03 | 220.88 | -28.28 | 61.19 | 0.5217 | 913.0 | 698.0 | |
| 0.00 | 3.85 | 0.00 | 2.24 | 16.28 | 220.73 | -28.42 | 60.87 | 0.5251 | 758.0 | 645.8 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 15.55 | 220.85 | -28.31 | 62.07 | 0.5192 | 713.0 | 603.6 | |
| 0.00 | 1.88 | 0.00 | 1.12 | 19.51 | 220.09 | -29.07 | 56.01 | 0.5545 | 638.0 | 544.1 | |
| 0.00 | 2.65 | 0.00 | 1.58 | 19.29 | 220.02 | -29.13 | 56.41 | 0.5538 | 751.0 | 606.7 | |
| 0.00 | 2.48 | 0.00 | 1.47 | 18.64 | 219.90 | -29.26 | 57.56 | 0.5509 | 910.0 | 750.7 | |
| 0.00 | 2.31 | 0.00 | 1.37 | 18.42 | 219.83 | -29.32 | 57.97 | 0.5503 | 952.0 | 720.8 | |
| 0.00 | 5.31 | 0.00 | 3.12 | 17.56 | 219.99 | -29.17 | 59.27 | 0.5427 | 699.0 | 689.5 | |
| 0.00 | 1.46 | 0.00 | 0.86 | 17.80 | 219.91 | -29.25 | 58.92 | 0.5453 | 527.0 | 519.3 | |
| 0.00 | 2.91 | 0.00 | 1.71 | 17.13 | 219.96 | -29.20 | 60.01 | 0.5404 | 561.0 | 568.4 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 18.47 | 219.25 | -29.91 | 58.33 | 0.5579 | 632.0 | 464.8 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 18.47 | 218.99 | -30.16 | 58.52 | 0.5610 | 602.0 | 482.5 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 19.57 | 217.52 | -31.63 | 57.87 | 0.5858 | 639.0 | 428.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
