SDO HMI 2011-11-24 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.48 | 13.09 | 1.54 | 8.14 | 17.86 | 214.39 | -34.21 | 62.15 | 0.6077 | 163.4 | 207.2 | |
|
previous
or next observation for the same group /

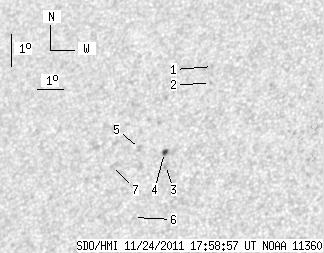

back to the solar disc SDO HMI 2011-11-24 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.69 | 20.42 | 215.77 | -32.83 | 57.40 | 0.6053 | 178.0 | 309.8 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 19.89 | 215.82 | -32.78 | 58.17 | 0.6015 | 701.0 | 586.3 | |
| 0.00 | 3.25 | 0.00 | 2.01 | 17.33 | 214.71 | -33.89 | 62.79 | 0.6009 | -608.0 | -326.3 | |
| 2.48 | 3.08 | 1.54 | 1.91 | 17.73 | 214.58 | -34.02 | 62.24 | 0.6044 | -636.1 | -490.3 | |
| 0.00 | 2.74 | 0.00 | 1.72 | 17.84 | 213.62 | -34.99 | 62.63 | 0.6169 | 625.0 | 599.5 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 15.72 | 213.84 | -34.76 | 65.78 | 0.6041 | 624.0 | 422.3 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 17.30 | 212.67 | -35.93 | 63.96 | 0.6259 | 692.0 | 576.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
