SDO HMI 2011-11-24 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.45 | 432.27 | 41.19 | 228.87 | 15.13 | 232.45 | -15.60 | 47.51 | 0.3509 | -547.1 | -293.9 | |
|
previous
or next observation for the same group /

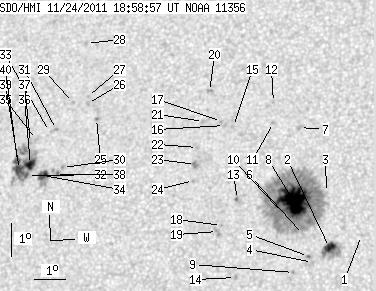

back to the solar disc SDO HMI 2011-11-24 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.62 | 13.88 | 236.44 | -11.61 | 42.80 | 0.2889 | -711.0 | -542.1 | |
| 6.76 | 24.99 | 3.51 | 12.95 | 13.51 | 235.46 | -12.59 | 45.98 | 0.2961 | -1161.6 | -612.1 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 15.18 | 235.27 | -12.78 | 42.47 | 0.3176 | -161.0 | -187.2 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 13.05 | 234.95 | -13.10 | 48.24 | 0.2972 | -287.0 | -246.3 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 13.23 | 234.82 | -13.23 | 48.06 | 0.3009 | -1076.0 | -1001.6 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 13.90 | 234.62 | -13.42 | 46.81 | 0.3105 | -145.0 | -163.4 | |
| 0.00 | 3.08 | 0.00 | 1.63 | 17.16 | 234.28 | -13.77 | 40.45 | 0.3521 | -897.0 | -736.5 | |
| 47.59 | 286.40 | 24.92 | 150.00 | 14.93 | 234.25 | -13.80 | 45.18 | 0.3265 | -1439.0 | -447.2 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 12.75 | 234.38 | -13.67 | 50.22 | 0.3013 | -1020.0 | -776.7 | |
| 0.51 | -8.00 | 0.27 | -8.00 | 14.56 | 233.92 | -14.13 | 46.66 | 0.3262 | -857.2 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 17.30 | 233.44 | -14.61 | 41.80 | 0.3630 | -884.0 | -705.3 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 17.92 | 233.38 | -14.66 | 40.73 | 0.3708 | -708.0 | -537.8 | |
| 0.00 | 2.57 | 0.00 | 1.36 | 14.94 | 232.47 | -15.58 | 48.49 | 0.3480 | -757.0 | -571.5 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 12.58 | 232.57 | -15.48 | 53.99 | 0.3235 | 849.0 | 671.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 17.17 | 232.16 | -15.89 | 44.37 | 0.3756 | -706.0 | -659.5 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 17.20 | 231.87 | -16.18 | 44.82 | 0.3793 | -827.0 | -721.2 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 17.32 | 231.76 | -16.29 | 44.77 | 0.3818 | -849.0 | -708.6 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 14.15 | 232.02 | -16.03 | 51.08 | 0.3456 | -779.0 | -582.8 | |
| 0.00 | 4.19 | 0.00 | 2.21 | 13.97 | 231.91 | -16.14 | 51.69 | 0.3453 | -836.0 | -710.3 | |
| 0.00 | 2.57 | 0.00 | 1.38 | 18.24 | 231.28 | -16.76 | 43.83 | 0.3973 | -684.0 | -676.9 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 17.32 | 231.18 | -16.87 | 45.75 | 0.3885 | -680.0 | -599.9 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 16.52 | 231.06 | -16.99 | 47.52 | 0.3815 | -745.0 | -515.6 | |
| 0.00 | 4.11 | 0.00 | 2.19 | 16.00 | 231.04 | -17.01 | 48.62 | 0.3763 | -978.0 | -813.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 15.51 | 231.02 | -17.03 | 49.68 | 0.3717 | -845.0 | -654.6 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 17.38 | 227.67 | -20.38 | 50.75 | 0.4309 | -846.0 | -810.1 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 17.84 | 227.32 | -20.73 | 50.35 | 0.4395 | -655.0 | -566.4 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 18.05 | 227.29 | -20.76 | 49.99 | 0.4418 | -669.0 | -586.6 | |
| 0.00 | 2.14 | 0.00 | 1.19 | 19.69 | 227.04 | -21.00 | 47.41 | 0.4603 | -667.0 | -501.5 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 17.86 | 226.85 | -21.20 | 50.90 | 0.4454 | -658.0 | -454.5 | |
| 0.00 | 1.46 | 0.00 | 0.80 | 15.87 | 226.72 | -21.33 | 54.87 | 0.4296 | 1019.0 | 811.6 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 17.03 | 226.39 | -21.66 | 53.02 | 0.4437 | 1037.0 | 876.9 | |
| 0.00 | 5.99 | 0.00 | 3.28 | 15.65 | 226.51 | -21.54 | 55.54 | 0.4305 | 571.0 | 620.2 | |
| 0.00 | 0.51 | 0.00 | 0.28 | 16.96 | 226.16 | -21.89 | 53.40 | 0.4460 | 697.0 | 724.0 | |
| 5.56 | 12.41 | 3.06 | 6.82 | 15.62 | 226.09 | -21.96 | 56.10 | 0.4358 | 976.7 | 508.0 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 16.71 | 225.76 | -22.29 | 54.34 | 0.4490 | 799.0 | 568.7 | |
| 7.02 | 53.67 | 3.88 | 29.69 | 15.95 | 225.65 | -22.40 | 55.94 | 0.4442 | 1251.3 | 665.8 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 16.62 | 225.57 | -22.48 | 54.73 | 0.4506 | 849.0 | 696.7 | |
| 1.28 | -36.00 | 0.71 | -36.00 | 15.61 | 225.59 | -22.46 | 56.66 | 0.4423 | 816.9 | 999999 | |
| 6.25 | -36.00 | 3.46 | -36.00 | 15.79 | 225.30 | -22.75 | 56.62 | 0.4475 | 910.5 | 999999 | |
| 2.48 | -36.00 | 1.38 | -36.00 | 16.03 | 225.21 | -22.84 | 56.25 | 0.4506 | 807.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
