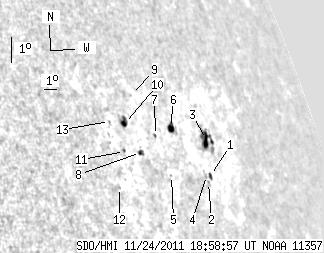

SDO HMI 2011-11-24 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.58 | 38.69 | 21.01 | 51.94 | 18.79 | 315.70 | 67.65 | 289.58 | 0.9301 | -238.7 | -172.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.88 | 2.31 | 2.70 | 3.32 | 17.74 | 317.40 | 69.35 | 288.28 | 0.9401 | -289.3 | -267.6 | |
| 0.00 | 1.03 | 0.00 | 1.45 | 17.54 | 317.04 | 68.99 | 288.09 | 0.9380 | -348.0 | -357.9 | |
| 5.05 | 13.52 | 7.48 | 20.06 | 18.85 | 318.03 | 69.98 | 289.40 | 0.9442 | -544.9 | -292.7 | |
| 0.00 | 2.14 | 0.00 | 3.02 | 17.75 | 317.05 | 69.00 | 288.32 | 0.9382 | -629.0 | -519.6 | |
| 0.00 | 1.03 | 0.00 | 1.29 | 17.83 | 314.22 | 66.17 | 288.68 | 0.9209 | 160.0 | 173.6 | |
| 4.62 | 5.82 | 6.12 | 7.70 | 19.30 | 315.30 | 67.25 | 290.14 | 0.9287 | -531.4 | -419.2 | |
| 0.00 | 1.54 | 0.00 | 1.93 | 19.08 | 313.93 | 65.88 | 290.07 | 0.9200 | -521.0 | -477.9 | |
| 1.63 | 3.17 | 1.92 | 3.75 | 18.59 | 312.43 | 64.39 | 289.71 | 0.9097 | 317.8 | 156.6 | |
| 0.00 | 0.68 | 0.00 | 0.84 | 20.39 | 313.13 | 65.08 | 291.58 | 0.9159 | -326.0 | -282.5 | |
| 2.40 | 4.79 | 2.79 | 5.60 | 19.51 | 311.94 | 63.89 | 290.78 | 0.9071 | 495.8 | 414.3 | |
| 0.00 | 1.03 | 0.00 | 1.17 | 18.65 | 311.33 | 63.28 | 289.92 | 0.9021 | 203.0 | 172.8 | |
| 0.00 | 0.86 | 0.00 | 0.94 | 17.56 | 310.29 | 62.24 | 288.85 | 0.8934 | 277.0 | 304.6 | |
| 0.00 | 0.77 | 0.00 | 0.87 | 19.60 | 310.94 | 62.89 | 291.02 | 0.9002 | 376.0 | 324.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
