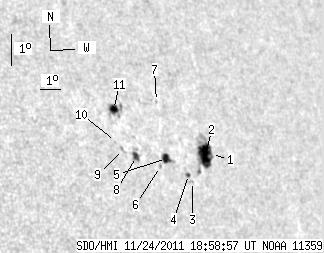

SDO HMI 2011-11-24 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.52 | 74.99 | 30.82 | 59.69 | 16.28 | 298.27 | 50.22 | 289.54 | 0.7849 | -344.0 | -236.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.46 | 38.86 | 1.20 | 31.78 | 16.05 | 299.94 | 51.90 | 288.87 | 0.8014 | 124.4 | -438.6 | |
| 21.23 | -1.00 | 17.37 | -1.00 | 16.03 | 299.64 | 51.59 | 288.90 | 0.7983 | -752.2 | 999999 | |
| 0.00 | 1.28 | 0.00 | 1.03 | 15.25 | 298.72 | 50.68 | 288.13 | 0.7876 | -535.0 | -475.5 | |
| 1.20 | 1.80 | 0.96 | 1.44 | 15.47 | 298.60 | 50.55 | 288.43 | 0.7868 | -671.7 | -565.3 | |
| 5.31 | 8.22 | 4.17 | 6.46 | 15.98 | 297.72 | 49.67 | 289.28 | 0.7787 | 535.8 | 241.5 | |
| 0.00 | 1.46 | 0.00 | 1.13 | 15.74 | 297.35 | 49.30 | 289.06 | 0.7744 | -613.0 | -495.6 | |
| 0.00 | 0.94 | 0.00 | 0.75 | 17.73 | 297.87 | 49.82 | 291.44 | 0.7841 | 278.0 | 222.0 | |
| 3.59 | 6.85 | 2.75 | 5.24 | 16.07 | 296.33 | 48.28 | 289.74 | 0.7644 | -683.5 | -475.6 | |
| 0.00 | 1.97 | 0.00 | 1.49 | 16.30 | 295.80 | 47.75 | 290.17 | 0.7593 | -592.0 | -545.4 | |
| 0.00 | 0.77 | 0.00 | 0.58 | 16.55 | 295.52 | 47.47 | 290.57 | 0.7568 | -633.0 | -543.8 | |
| 5.73 | 12.84 | 4.37 | 9.79 | 17.53 | 295.76 | 47.71 | 291.76 | 0.7618 | 681.8 | 347.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
