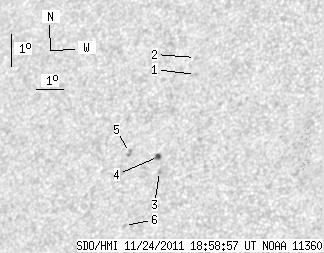

SDO HMI 2011-11-24 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.14 | 10.87 | 1.32 | 6.72 | 18.18 | 214.51 | -33.54 | 61.26 | 0.6015 | 160.3 | 244.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.69 | 20.32 | 215.46 | -32.58 | 57.38 | 0.6019 | 726.0 | 542.2 | |
| 0.00 | 1.46 | 0.00 | 0.90 | 20.85 | 215.34 | -32.71 | 56.67 | 0.6067 | 551.0 | 486.9 | |
| 0.00 | 1.46 | 0.00 | 0.89 | 17.30 | 214.79 | -33.26 | 62.45 | 0.5928 | -771.0 | -539.7 | |
| 2.14 | 3.25 | 1.32 | 2.00 | 17.76 | 214.66 | -33.39 | 61.81 | 0.5969 | -762.0 | -594.0 | |
| 0.00 | 2.48 | 0.00 | 1.55 | 17.87 | 213.55 | -34.50 | 62.30 | 0.6112 | 785.0 | 689.4 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 15.63 | 213.82 | -34.23 | 65.64 | 0.5969 | 728.0 | 481.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
