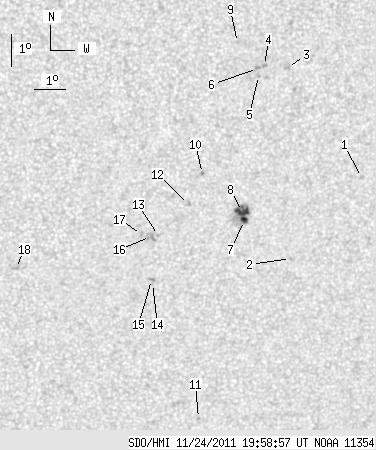

SDO HMI 2011-11-24 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.10 | 58.62 | 5.63 | 32.46 | -16.51 | 266.78 | 19.29 | 225.48 | 0.4479 | 456.5 | 231.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 1.07 | -15.76 | 271.48 | 23.98 | 232.70 | 0.4938 | 738.0 | 600.2 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -18.27 | 269.42 | 21.92 | 226.21 | 0.4931 | 708.0 | 594.8 | |
| 0.00 | 3.34 | 0.00 | 1.83 | -12.35 | 268.67 | 21.18 | 235.65 | 0.4293 | 720.0 | 612.9 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -12.28 | 267.92 | 20.43 | 234.85 | 0.4189 | 933.0 | 773.3 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -12.58 | 267.75 | 20.26 | 234.02 | 0.4194 | 646.0 | 548.4 | |
| 0.00 | 2.31 | 0.00 | 1.26 | -12.37 | 267.70 | 20.21 | 234.38 | 0.4168 | 927.0 | 823.8 | |
| 2.65 | 26.02 | 1.48 | 14.49 | -17.06 | 267.73 | 20.24 | 225.92 | 0.4623 | 899.0 | 597.3 | |
| 7.45 | -7.00 | 4.15 | -7.00 | -16.77 | 267.64 | 20.14 | 226.25 | 0.4583 | 1097.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -11.57 | 267.00 | 19.50 | 235.09 | 0.4006 | 847.0 | 548.1 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -15.58 | 266.21 | 18.71 | 226.24 | 0.4297 | 840.0 | 688.5 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -23.37 | 267.03 | 19.54 | 216.00 | 0.5244 | 717.0 | 572.2 | |
| 0.00 | 1.88 | 0.00 | 1.04 | -16.54 | 265.84 | 18.35 | 224.05 | 0.4359 | -908.0 | -756.2 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -17.50 | 264.96 | 17.47 | 221.12 | 0.4372 | -757.0 | -571.2 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -19.01 | 264.93 | 17.43 | 218.76 | 0.4543 | 527.0 | 471.7 | |
| 0.00 | 2.05 | 0.00 | 1.14 | -18.88 | 264.88 | 17.38 | 218.87 | 0.4523 | 698.0 | 547.7 | |
| 0.00 | 5.99 | 0.00 | 3.29 | -17.52 | 264.71 | 17.21 | 220.66 | 0.4349 | -899.0 | -747.5 | |
| 0.00 | 2.14 | 0.00 | 1.17 | -17.46 | 264.41 | 16.91 | 220.28 | 0.4311 | -855.0 | -698.9 | |
| 0.00 | 3.00 | 0.00 | 1.62 | -18.50 | 260.44 | 12.95 | 211.63 | 0.4069 | -893.0 | -662.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
