SDO HMI 2011-11-24 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.37 | 431.83 | 44.14 | 228.22 | 15.16 | 232.33 | -15.17 | 46.57 | 0.3461 | -533.9 | -250.8 | |
|
previous
or next observation for the same group /

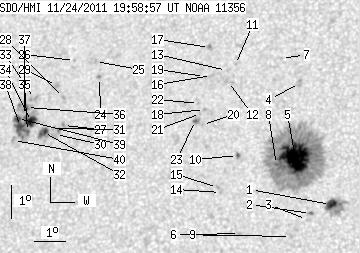

back to the solar disc SDO HMI 2011-11-24 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.93 | 23.62 | 3.59 | 12.21 | 13.51 | 235.44 | -12.06 | 44.76 | 0.2898 | -1110.8 | -621.1 | |
| 1.20 | 1.97 | 0.62 | 1.02 | 13.24 | 234.83 | -12.67 | 46.83 | 0.2940 | -948.4 | -692.1 | |
| 0.00 | 0.26 | 0.00 | 0.13 | 13.06 | 234.71 | -12.78 | 47.55 | 0.2934 | -715.0 | -581.3 | |
| 0.00 | 3.00 | 0.00 | 1.58 | 17.19 | 234.23 | -13.26 | 39.34 | 0.3473 | -886.0 | -709.5 | |
| 50.76 | 287.00 | 26.52 | 149.98 | 14.93 | 234.26 | -13.24 | 43.99 | 0.3199 | -1429.3 | -435.0 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 12.54 | 234.24 | -13.25 | 49.92 | 0.2938 | -788.0 | -657.9 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 17.96 | 233.60 | -13.90 | 39.19 | 0.3632 | -733.0 | -500.8 | |
| 0.86 | -5.00 | 0.45 | -5.00 | 14.71 | 233.68 | -13.82 | 45.69 | 0.3243 | -783.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 12.62 | 232.64 | -14.85 | 52.79 | 0.3155 | 880.0 | 655.4 | |
| 0.51 | 1.54 | 0.27 | 0.81 | 14.98 | 232.42 | -15.07 | 47.50 | 0.3422 | -888.8 | -772.2 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 17.76 | 232.14 | -15.36 | 42.30 | 0.3764 | -645.0 | -474.7 | |
| 0.00 | 3.34 | 0.00 | 1.78 | 17.24 | 231.96 | -15.54 | 43.63 | 0.3724 | -789.0 | -715.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 17.57 | 231.86 | -15.63 | 43.14 | 0.3773 | -682.0 | -537.1 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 13.85 | 231.97 | -15.53 | 50.92 | 0.3364 | -795.0 | -625.1 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 14.00 | 231.86 | -15.64 | 50.75 | 0.3392 | -871.0 | -690.8 | |
| 0.00 | 2.23 | 0.00 | 1.19 | 17.42 | 231.39 | -16.10 | 44.26 | 0.3808 | -762.0 | -595.8 | |
| 0.00 | 2.40 | 0.00 | 1.29 | 18.28 | 231.25 | -16.25 | 42.89 | 0.3920 | -839.0 | -702.0 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 16.37 | 231.26 | -16.23 | 46.57 | 0.3710 | -851.0 | -695.2 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 17.38 | 231.17 | -16.32 | 44.71 | 0.3830 | -662.0 | -579.6 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 15.91 | 231.24 | -16.26 | 47.56 | 0.3665 | -862.0 | -646.5 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 16.25 | 231.14 | -16.35 | 47.02 | 0.3711 | -895.0 | -713.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 16.55 | 231.05 | -16.44 | 46.55 | 0.3754 | -888.0 | -622.2 | |
| 1.20 | 3.77 | 0.64 | 2.01 | 16.03 | 231.00 | -16.49 | 47.70 | 0.3705 | -880.4 | -807.9 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 17.32 | 227.75 | -19.74 | 50.01 | 0.4227 | -930.0 | -767.6 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 17.81 | 227.56 | -19.93 | 49.34 | 0.4297 | -825.0 | -715.6 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 17.84 | 226.87 | -20.63 | 50.22 | 0.4383 | -582.0 | -440.3 | |
| 0.00 | 2.05 | 0.00 | 1.12 | 15.84 | 226.73 | -20.76 | 54.23 | 0.4222 | 922.0 | 699.7 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 16.70 | 226.64 | -20.86 | 52.66 | 0.4308 | 937.0 | 745.2 | |
| 0.00 | 3.08 | 0.00 | 1.70 | 17.06 | 226.36 | -21.13 | 52.30 | 0.4375 | 928.0 | 760.0 | |
| 0.00 | 4.28 | 0.00 | 2.34 | 15.56 | 226.50 | -21.00 | 55.07 | 0.4229 | 289.0 | 457.9 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 15.75 | 226.41 | -21.08 | 54.81 | 0.4255 | 864.0 | 750.7 | |
| 5.65 | 10.87 | 3.09 | 5.95 | 15.62 | 226.10 | -21.40 | 55.43 | 0.4286 | 1008.1 | 570.7 | |
| 0.00 | 3.68 | 0.00 | 2.03 | 16.66 | 225.68 | -21.82 | 53.90 | 0.4426 | 848.0 | 687.8 | |
| 7.02 | 55.72 | 3.86 | 30.70 | 15.95 | 225.66 | -21.83 | 55.28 | 0.4369 | 1216.6 | 679.9 | |
| 0.34 | -34.00 | 0.19 | -34.00 | 15.65 | 225.56 | -21.93 | 56.00 | 0.4357 | 1038.0 | 999999 | |
| 1.63 | -34.00 | 0.90 | -34.00 | 16.38 | 225.44 | -22.05 | 54.70 | 0.4432 | 874.2 | 999999 | |
| 0.34 | -34.00 | 0.19 | -34.00 | 16.13 | 225.41 | -22.09 | 55.22 | 0.4417 | 765.8 | 999999 | |
| 4.11 | -34.00 | 2.26 | -34.00 | 15.80 | 225.31 | -22.18 | 55.98 | 0.4402 | 925.7 | 999999 | |
| 2.82 | -34.00 | 1.56 | -34.00 | 16.04 | 225.19 | -22.31 | 55.65 | 0.4438 | 772.4 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.56 | 15.37 | 225.13 | -22.36 | 57.03 | 0.4392 | 484.0 | 506.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
