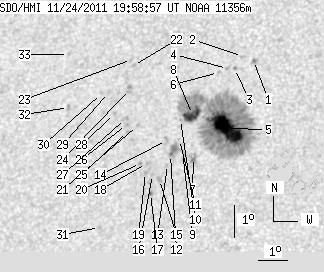

SDO HMI 2011-11-24 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.66 | 351.64 | 30.30 | 198.92 | 17.48 | 222.79 | -24.70 | 55.45 | 0.4858 | -325.0 | -238.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.92 | 19.48 | 224.08 | -23.42 | 50.65 | 0.4865 | 735.0 | 604.8 | |
| 0.00 | 1.88 | 0.00 | 1.07 | 19.60 | 223.68 | -23.81 | 50.89 | 0.4923 | -129.0 | -86.1 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 19.22 | 223.47 | -24.03 | 51.75 | 0.4916 | -697.0 | -649.4 | |
| 0.00 | 1.71 | 0.00 | 0.97 | 19.22 | 223.23 | -24.27 | 52.01 | 0.4945 | 664.0 | 442.3 | |
| 38.18 | 295.39 | 21.48 | 166.64 | 17.37 | 223.47 | -24.03 | 55.00 | 0.4764 | -1289.2 | -374.9 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 19.09 | 222.94 | -24.56 | 52.53 | 0.4969 | -659.0 | -519.9 | |
| 0.00 | 5.22 | 0.00 | 2.95 | 16.47 | 222.47 | -25.03 | 57.63 | 0.4823 | -891.0 | -546.8 | |
| 14.12 | -5.00 | 8.04 | -5.00 | 17.79 | 222.24 | -25.25 | 55.48 | 0.4950 | -871.8 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 16.65 | 222.07 | -25.43 | 57.68 | 0.4888 | -228.0 | -73.2 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 17.63 | 221.86 | -25.64 | 56.14 | 0.4987 | -438.0 | -260.0 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 17.01 | 221.91 | -25.58 | 57.17 | 0.4934 | -198.0 | -209.9 | |
| 0.68 | 6.93 | 0.39 | 3.94 | 16.55 | 221.67 | -25.82 | 58.22 | 0.4932 | 739.8 | 263.8 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 16.24 | 221.61 | -25.88 | 58.83 | 0.4918 | 720.0 | 679.1 | |
| 0.00 | 3.34 | 0.00 | 1.91 | 16.98 | 221.47 | -26.02 | 57.64 | 0.4988 | 588.0 | 562.6 | |
| 0.00 | 2.23 | 0.00 | 1.26 | 15.78 | 221.40 | -26.09 | 59.86 | 0.4914 | 853.0 | 796.4 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 15.93 | 221.14 | -26.35 | 59.81 | 0.4959 | 755.0 | 662.7 | |
| 0.68 | 1.46 | 0.39 | 0.83 | 15.35 | 221.15 | -26.34 | 60.86 | 0.4919 | 790.0 | 816.9 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 16.26 | 220.89 | -26.61 | 59.42 | 0.5014 | 844.0 | 655.8 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 15.99 | 220.89 | -26.60 | 59.92 | 0.4995 | 998.0 | 832.9 | |
| 0.00 | 1.46 | 0.00 | 0.83 | 16.26 | 220.68 | -26.81 | 59.60 | 0.5041 | 754.0 | 637.8 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 17.42 | 220.40 | -27.10 | 57.80 | 0.5157 | 850.0 | 726.5 | |
| 0.00 | 1.46 | 0.00 | 0.85 | 19.27 | 219.94 | -27.56 | 55.10 | 0.5346 | 797.0 | 631.5 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 19.46 | 219.83 | -27.66 | 54.89 | 0.5373 | 446.0 | 380.9 | |
| 0.00 | 4.02 | 0.00 | 2.34 | 18.53 | 219.93 | -27.57 | 56.33 | 0.5293 | 845.0 | 710.3 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 17.23 | 220.08 | -27.42 | 58.40 | 0.5185 | 927.0 | 704.7 | |
| 0.00 | 1.37 | 0.00 | 0.79 | 17.45 | 220.01 | -27.49 | 58.09 | 0.5208 | 865.0 | 734.8 | |
| 0.00 | 2.82 | 0.00 | 1.64 | 17.63 | 219.94 | -27.55 | 57.83 | 0.5229 | 818.0 | 711.1 | |
| 0.00 | 1.46 | 0.00 | 0.85 | 17.78 | 219.53 | -27.96 | 57.92 | 0.5291 | 727.0 | 525.5 | |
| 0.00 | 1.71 | 0.00 | 1.00 | 18.43 | 219.21 | -28.29 | 57.11 | 0.5376 | 584.0 | 466.8 | |
| 0.00 | 0.68 | 0.00 | 0.40 | 18.39 | 218.96 | -28.53 | 57.37 | 0.5403 | 509.0 | 428.1 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 14.30 | 219.54 | -27.95 | 64.06 | 0.5072 | 136.0 | 215.5 | |
| 0.00 | 2.65 | 0.00 | 1.57 | 17.94 | 217.87 | -29.63 | 58.96 | 0.5511 | 757.0 | 573.3 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 19.58 | 217.55 | -29.95 | 56.58 | 0.5657 | 718.0 | 521.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
