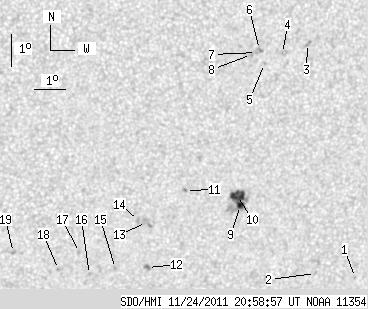

SDO HMI 2011-11-24 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.81 | 62.30 | 6.61 | 34.61 | -16.49 | 266.74 | 19.80 | 226.24 | 0.4534 | 300.7 | 163.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.45 | -19.36 | 271.96 | 25.01 | 228.17 | 0.5375 | 596.0 | 457.6 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -19.21 | 270.56 | 23.61 | 226.82 | 0.5208 | 648.0 | 478.8 | |
| 0.00 | 3.25 | 0.00 | 1.80 | -12.06 | 269.43 | 22.49 | 237.74 | 0.4442 | 723.0 | 623.6 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -12.36 | 268.64 | 21.70 | 236.26 | 0.4362 | 771.0 | 568.6 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -12.66 | 268.08 | 21.14 | 234.99 | 0.4314 | 689.0 | 577.6 | |
| 0.00 | 2.82 | 0.00 | 1.54 | -12.23 | 267.88 | 20.94 | 235.60 | 0.4251 | 877.0 | 679.2 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -12.32 | 267.79 | 20.85 | 235.30 | 0.4247 | 918.0 | 663.6 | |
| 0.00 | 1.71 | 0.00 | 0.94 | -12.38 | 267.63 | 20.69 | 234.99 | 0.4232 | 942.0 | 818.5 | |
| 3.51 | 29.53 | 1.97 | 16.51 | -17.04 | 267.74 | 20.80 | 226.71 | 0.4683 | 865.5 | 523.2 | |
| 8.30 | -9.00 | 4.64 | -9.00 | -16.72 | 267.60 | 20.66 | 227.05 | 0.4636 | 1070.4 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -16.55 | 265.88 | 18.94 | 224.91 | 0.4425 | -900.0 | -809.6 | |
| 0.00 | 3.00 | 0.00 | 1.67 | -18.96 | 264.89 | 17.95 | 219.64 | 0.4588 | 772.0 | 597.6 | |
| 0.00 | 5.65 | 0.00 | 3.11 | -17.54 | 264.71 | 17.76 | 221.53 | 0.4407 | -790.0 | -732.8 | |
| 0.00 | 2.23 | 0.00 | 1.22 | -17.47 | 264.44 | 17.50 | 221.21 | 0.4372 | -870.0 | -689.5 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -18.98 | 263.84 | 16.90 | 217.97 | 0.4488 | -675.0 | -597.0 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -19.16 | 263.01 | 16.07 | 216.35 | 0.4431 | -759.0 | -582.3 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -18.46 | 262.62 | 15.68 | 216.69 | 0.4308 | -739.0 | -634.8 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -18.99 | 261.99 | 15.05 | 214.83 | 0.4316 | -893.0 | -696.6 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -18.44 | 260.49 | 13.55 | 212.86 | 0.4113 | -883.0 | -765.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
