SDO HMI 2011-11-24 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.47 | 53.01 | 4.75 | 29.52 | -16.48 | 266.77 | 20.38 | 227.05 | 0.4596 | 249.5 | 257.6 | |
|
previous
or next observation for the same group /

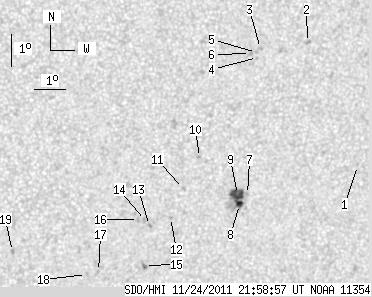

back to the solar disc SDO HMI 2011-11-24 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.49 | -15.88 | 271.57 | 25.18 | 233.79 | 0.5093 | 673.0 | 532.8 | |
| 0.00 | 2.23 | 0.00 | 1.23 | -12.07 | 269.47 | 23.08 | 238.38 | 0.4521 | 777.0 | 636.3 | |
| 0.00 | 1.71 | 0.00 | 0.94 | -12.24 | 267.95 | 21.56 | 236.34 | 0.4333 | 909.0 | 790.0 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -12.51 | 267.87 | 21.48 | 235.71 | 0.4346 | 471.0 | 468.5 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -12.36 | 267.83 | 21.44 | 235.95 | 0.4327 | 884.0 | 698.3 | |
| 0.00 | 2.05 | 0.00 | 1.13 | -12.39 | 267.63 | 21.25 | 235.67 | 0.4304 | 768.0 | 746.3 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -16.74 | 267.98 | 21.59 | 228.25 | 0.4744 | 654.0 | 556.7 | |
| 3.08 | 26.11 | 1.73 | 14.65 | -17.05 | 267.75 | 21.36 | 227.45 | 0.4748 | 878.3 | 633.4 | |
| 5.39 | -8.00 | 3.02 | -8.00 | -16.73 | 267.65 | 21.26 | 227.83 | 0.4705 | 1181.5 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -15.57 | 266.27 | 19.88 | 227.95 | 0.4430 | 788.0 | 673.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -16.53 | 265.85 | 19.46 | 225.72 | 0.4480 | -828.0 | -614.3 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -17.43 | 265.52 | 19.13 | 223.76 | 0.4539 | -719.0 | -623.4 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -17.67 | 264.85 | 18.47 | 222.39 | 0.4495 | -928.0 | -746.6 | |
| 0.00 | 2.83 | 0.00 | 1.56 | -17.52 | 264.71 | 18.32 | 222.42 | 0.4462 | -842.0 | -748.7 | |
| 0.00 | 3.00 | 0.00 | 1.67 | -18.93 | 264.83 | 18.44 | 220.43 | 0.4633 | 699.0 | 479.4 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -17.48 | 264.48 | 18.09 | 222.12 | 0.4434 | -795.0 | -697.6 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -19.11 | 263.34 | 16.95 | 217.86 | 0.4507 | -678.0 | -514.2 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -19.20 | 262.95 | 16.57 | 217.11 | 0.4481 | -617.0 | -587.4 | |
| 0.00 | 1.97 | 0.00 | 1.07 | -18.45 | 260.48 | 14.10 | 213.89 | 0.4161 | -878.0 | -692.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
